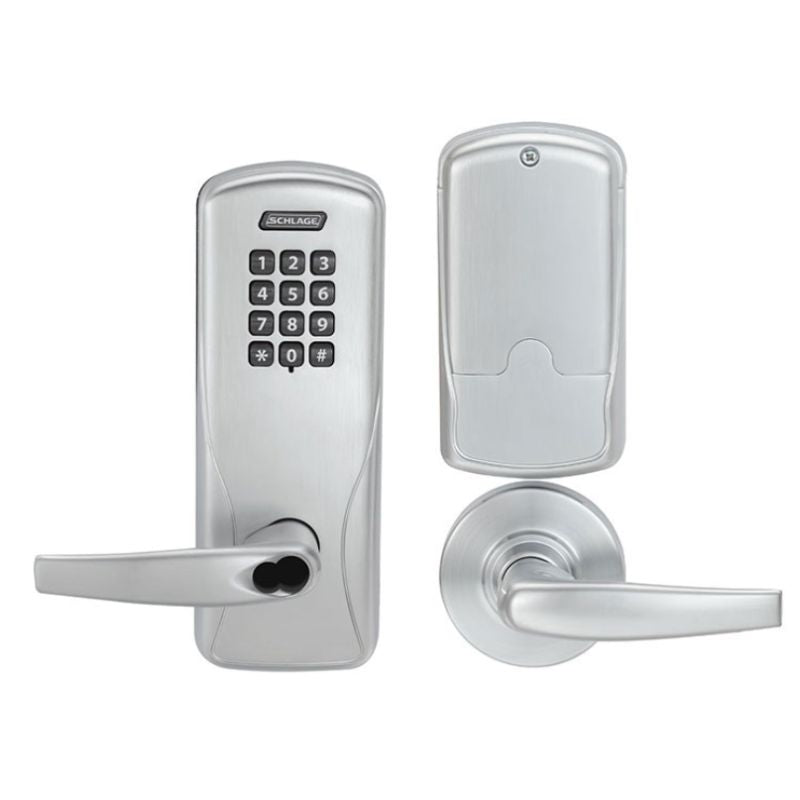

Schlage Electronics CO100CY70-KP-ATH-626-J Classroom/Storeroom Cylindrical Keypad Lock, FSIC Prep Less Core, Satin Chrome Finish

  • SKU: CO100CY70KPATH626JL
Schlage Electronics CO100CY70 KP ATH 626 JD CO-100
Zoomed view
All SCHLAGE ELECTRONICS Products

Schlage Electronics CO100CY70-KP-ATH-626-J Classroom/Storeroom Cylindrical Keypad Lock, FSIC Prep Less Core, Satin Chrome Finish

  • SKU: CO100CY70KPATH626JL
  • ✓
    In Stock
    In Stock
Your Price
Dhs. 2,283.00/ea
Handing: LH Left Hand

Schlage Electronics CO100CY70-KP-ATH-626-J Classroom-Storeroom Cylindrical Keypad Lock, 500 Users, Athens Style Lever, Deadlatch, FSIC Prep Less Core, Grade 1, US26D Satin Chrome Finish

This Schlage Electronics cylindrical keypad lock delivers professional-grade security tailored for classroom and storeroom applications. With capacity for 500 unique access codes, it provides scalable credential management without requiring traditional keys. The Athens-style lever and integrated deadlatch mechanism ensure dependable performance in high-traffic institutional settings. Constructed to Grade 1 standards and finished in satin chrome, the FSIC prep less core design streamlines installation while maintaining the security integrity demanded by educational and commercial facilities.

Manufacturer Schlage Electronics
SKU CO100CY70KPATH626J
Grade Grade 1
Unit of Measure Each
Installation Commercial
Base Material Brass or Bronze
Fire Rating 3 Hours {A}
ADA Compliance Yes
Limited Warranty 2 Years
UL Listing UL 294, ULC S319, UL 10C Listed
ANSI ANSI/BHMA A156.25 (full outdoor), A156.2 Series 4000 Grade 1
Fire Rated Yes
Door Thickness 1-3/4"
Latch Backset Dim 2-3/4"
Bolt Projection 1/2"
Screws Combination
# Pins 6
Lever/Knob Design ATH - Athens Lever
Std. Latch Backset Dim 2-3/4"
Function Family Storeroom
Std. Latch Type Dead Latch (Guarded)
Std. Strike Type ANSI Strike
Lever/Knob Design Family Curved Lever
Cylinder Type FSIC Prep Less Core
Latch Backset Dimension 2-3/4"
Power 4 AA Batteries
Operating Voltage 4 to 7 VDC
AMP Draw 250 mA
Std. Strike Height 1-1/4"
Std. Strike Width 4-7/8"
Keypad Type Pushbutton
Battery Life 2 Years
Software Included No
# Users 500
Dust Box No
Std. Latch Number 13-247 626
Std. Strike Number 10-025 626
Bolt Throw 1/2"
Lock Platform Cylindrical Lock with Keypad
Reader Technology Keypad Reader
Rose/Escutcheon Dimensions 3-7/16" Diameter
Function 70-Classroom/Storeroom
Product Cut Sheet
