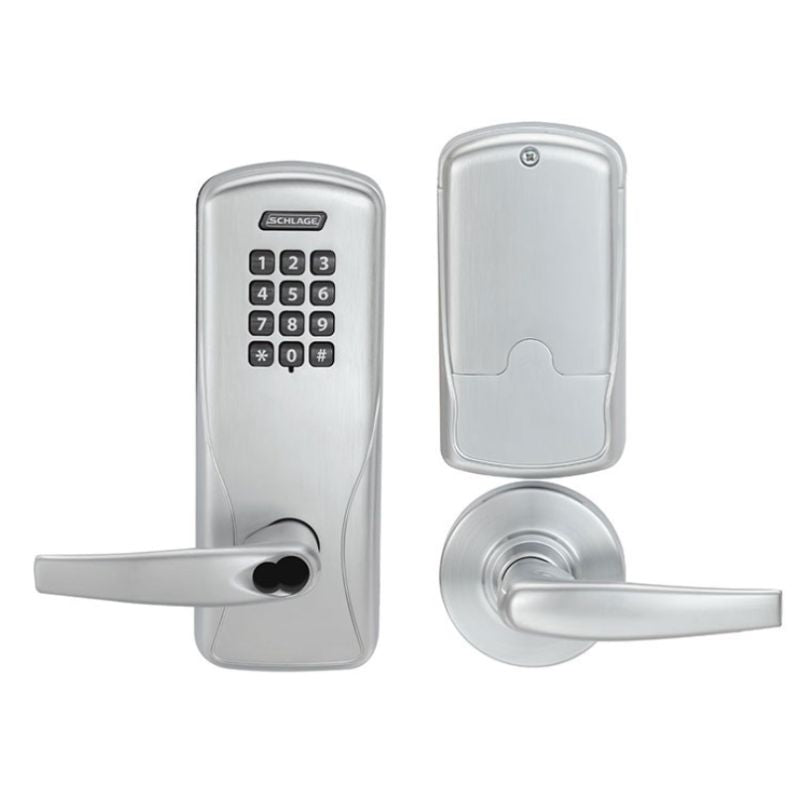

Schlage Electronics CO100CY70-KP-ATH-626-B Classroom/Storeroom Electronic Cylindrical Keypad Lock, SFIC Prep Less Core, Athens Style Lever, Satin Chrome Finish

  • SKU: CO100CY70KPATH626BL
Schlage Electronics CO100CY70 KP ATH 626 B
Zoomed view
All SCHLAGE ELECTRONICS Products

Schlage Electronics CO100CY70-KP-ATH-626-B Classroom/Storeroom Electronic Cylindrical Keypad Lock, SFIC Prep Less Core, Athens Style Lever, Satin Chrome Finish

  • SKU: CO100CY70KPATH626BL
  • ✓
    In Stock
    In Stock
Your Price
Dhs. 2,283.00/ea
Handing: LH Left Hand

Schlage Electronics CO100CY70-KP-ATH-626-B Classroom-Storeroom Cylindrical Keypad Lock, 500 Users, Athens Style Lever, Deadlatch, SFIC Prep Less Core, Grade 1, US26D Satin Chrome Finish

Schlage Electronics CO100CY70-KP-ATH-626-B delivers institutional-level security with electronic access management capabilities. Accommodating 500 individual user codes, it streamlines credential administration while maintaining strict entry control for educational and storage spaces. The Athens-style lever combined with deadlatch technology ensures reliable operation under continuous institutional use. Certified Grade 1 for exceptional durability, the lock incorporates an SFIC prep-less core that reduces installation complexity and facilitates maintenance procedures. Its satin chrome finish provides superior corrosion resistance in demanding commercial environments.

Manufacturer Schlage Electronics
SKU CO100CY70KPATH626B
Grade Grade 1
Unit of Measure Each
Installation Commercial
Base Material Brass or Bronze
Fire Rating 3 Hours {A}
ADA Compliance Yes
Limited Warranty 2 Years
UL Listing UL 294, ULC S319, UL 10C Listed
ANSI ANSI/BHMA A156.25 (full outdoor), A156.2 Series 4000 Grade 1
Fire Rated Yes
Door Thickness 1-3/4"
Latch Backset Dim 2-3/4"
Bolt Projection 1/2"
Screws Combination
# Pins 6
Lever/Knob Design ATH - Athens Lever
Std. Latch Backset Dim 2-3/4"
Function Family Storeroom
Std. Latch Type Dead Latch (Guarded)
Std. Strike Type ANSI Strike
Lever/Knob Design Family Curved Lever
Cylinder Type SFIC Prep Less Core
Latch Backset Dimension 2-3/4"
Power 4 AA Batteries
Operating Voltage 4 to 7 VDC
AMP Draw 250 mA
Std. Strike Height 1-1/4"
Std. Strike Width 4-7/8"
Keypad Type Pushbutton
Battery Life 2 Years
Software Included No
# Users 500
Dust Box No
Std. Latch Number 13-247 626
Std. Strike Number 10-025 626
Bolt Throw 1/2"
Lock Platform Cylindrical Lock with Keypad
Reader Technology Keypad Reader
Rose/Escutcheon Dimensions 3-7/16" Diameter
Function 70-Classroom/Storeroom
