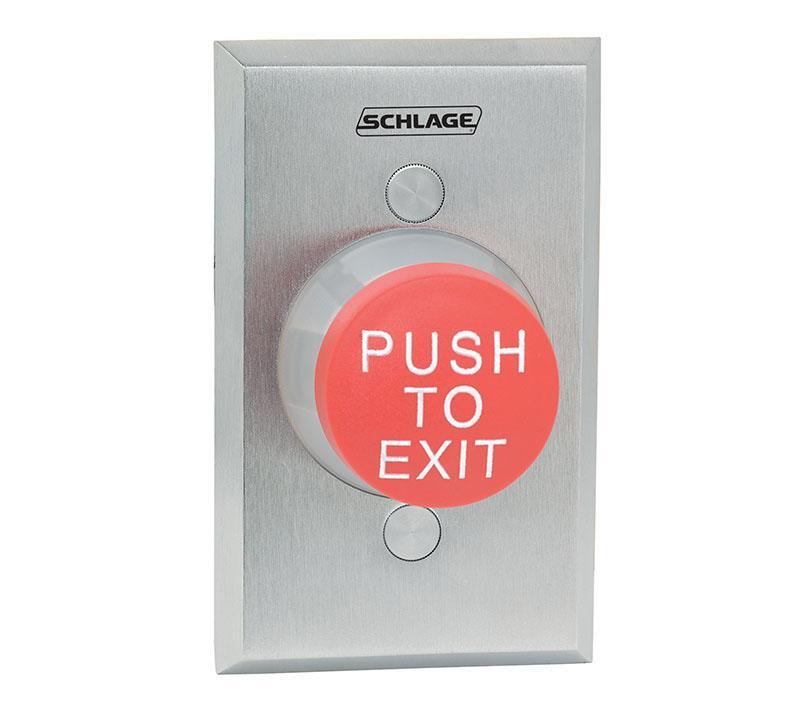

Schlage Electronics 621RD EX 1-1/4" Button, Single Gang, Red, "PUSH TO EXIT"
Schlage pushbuttons, specifically the 620 and 631 Series, streamline access control for both entrances and exits, making them simple to install and operate. These models come equipped with either standard or narrow stile plates, allowing them to adapt to various door configurations. Notably, the 620 Series offers a diverse selection of button configurations and finishing options that not only function well but also contribute to the door's aesthetic appeal.
The 620 Series is designed to be installer-friendly, featuring screw terminal connections for momentary action models and an optional L2/ILL PC board that simplifies the setup of multi-colored LED backlit illumination. This feature enhances visibility and ease of use with options for green, yellow, and red lights. Additional configurations available include choices for maintained or delayed actions, double pole double throw switches, and robust faceplates available in several architectural finishes to suit a variety of preferences and requirements.
Further specifications include:
- Clear "PUSH TO EXIT" labels and accessible handicap symbols for easy operation.
- Options for glow-in-the-dark and LED backlit buttons to ensure visibility in dim conditions.
- Standard momentary action with the option to order with delayed (0-60 seconds) or alternate actions.
- Availability of double pole, double throw switches, excluding those with delayed actions.
- Choices between standard, heavy-duty single gang, or narrow stile faceplates.
- Variety in button sizes from 1-1/4” inset to 2-3/4” large mushroom.
- All units are UL 294 Listed, guaranteeing safety and reliability.
