Description

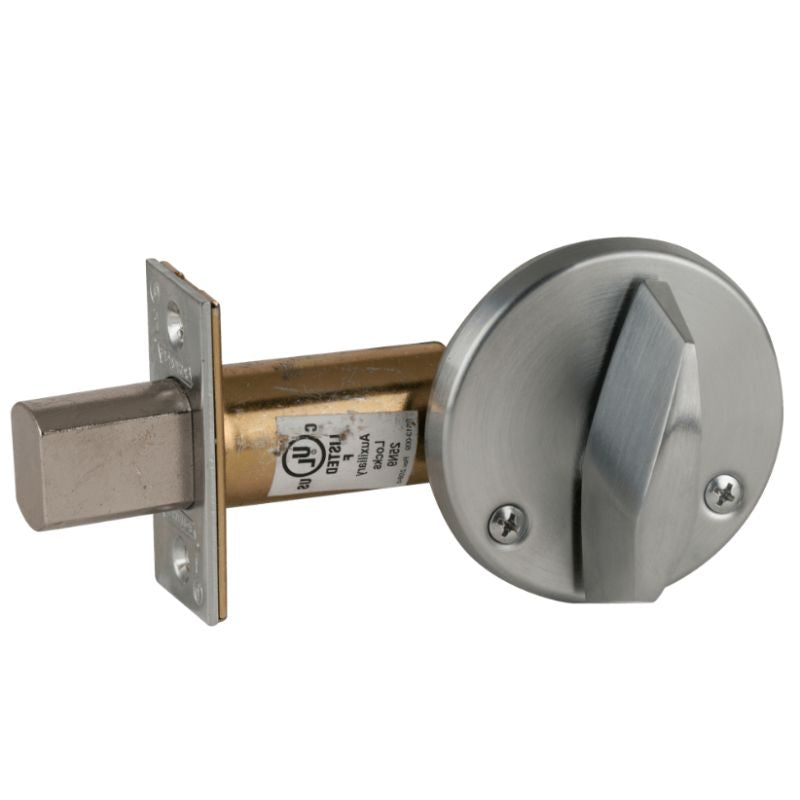

Schlage B680 626 Deadlock Door Bolt, Turn Unit Inside x No Outside Trim, Grade 1, 2-3/4" Backset, Satin Chrome
Schlage B680 626 Deadlock Door Bolt features a Grade 1 2-3/4" backset for added security. This Satin Chrome unit is designed to be turned inside with no outside trim required.
Schlage B600 Series Overview
Commercial Grade Deadbolts
The B600 Series are Schlage’s highest grade deadbolt locks. Choose the 600 for Grade 1 security in high-traffic commercial applications. A variety of functions and finishes makes the B600Series a versatile choice for added security no matter where you use it.
- 1" (25 mm) throw, high-strength steel alloy deadbolt with hardened steel roller resists sawing and kick-in attacks
- Precision-built solid brass 6-pin cylinders with phosphor bronze springs and nickel silver pins ensure long life and smooth operation
- Tough nickel silver keys for smooth, long-lasting operation
- Exclusive concealed wood frame reinforcer protects wood jamb against kick-in attacks
- Free-spinning solid cylinder collar resists wrenching and prying
- Large inside Americans with Disabilities Act (ADA) compliant thumbturn makes it easy to throw and retract deadbolt
- Metal shield protects bolt from ice-pick attack through the door
- Hardened steel ball-bearings protect mounting bolts from drill attack
- Meets UL10B and UL10C requirements
Product Specs
Manufacturer | Schlage |
SKU | B680 626 |
Grade | Grade 1 |
Installation | Commercial |
Origin | — |
Unit of Measure | Each |
Finish | |
Finish |
626/US26D |
Finish Description | Satin Chrome |
Technical Specs
Function |
680-Door Bolt |
ANSI Function |
E0191 - Door Bolt |
Door Thickness | 1-3/8" - 2-1/2" |
Std. Latch Number | 12-631 |
Std. Latch Type | Deadbolt |
Std. Latch Backset Dim | 2-3/4 In. |
Lock Face Size | 2-1/4 In. x 1-1/8 In. |
Bolt Projection | 1 In. |
Std. Strike Number | 10-094 |
Std. Strike Type | Flat |
Std. Strike Height | 2-3/4 In. |
Std. Strike Width | 1-1/8 In. |
Dust Box | None |
Product Type | Deadbolts |
