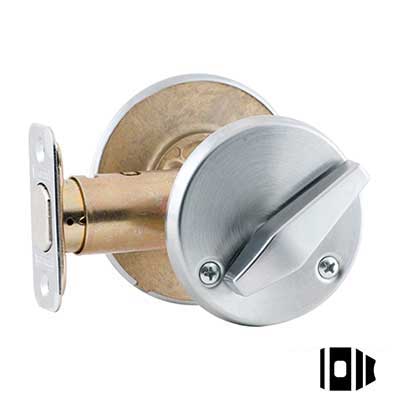

Schlage B500 Series Overview
Commercial Grade Deadbolts
Designed by locksmiths for locksmiths, the B500 Series deadbolt can be fitted with any Schlage cylinder, fits virtually every door you service, enhances lock strength on the jamb side of the door and will change forever the way you look at deadbolts.
Manufacturer | Schlage |
Grade | Grade 2 |
Installation | Commercial |
Unit of Measure | Each |
Fire Rated | Yes |
Function | 581-Door Bolt w Trim |
ANSI Function |
E01112 - Door Bolt |
Door Thickness | 1-3/8 In. - 1-7/8 In. |
Std. Latch Number | 12-287 |
Std. Latch Type | Deadbolt |
Std. Latch Backset Dim | Adjustable 2-3/8 In. and 2-3/4 In. |
Lock Face Size | 2-1/4 In. x 1 In. |
Bolt Projection | 1 In. |
Std. Strike Number | 10-094 |
Std. Strike Type | Flat |
Std. Strike Height | 2-3/4 In. |
Std. Strike Width | 1-1/8 In. |
Dust Box | None |
Product Type | Deadbolts |
