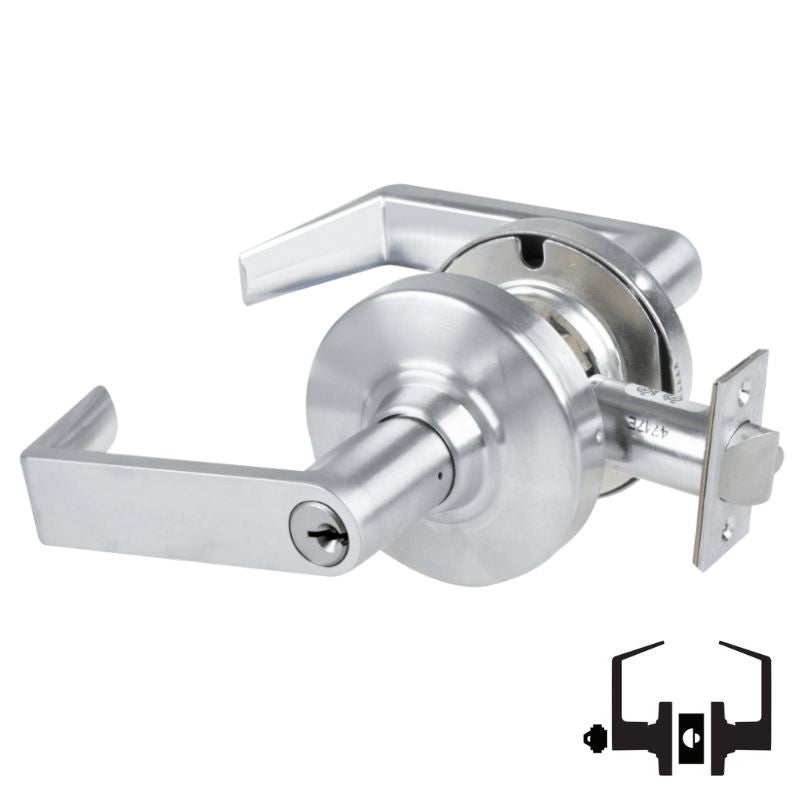

Schlage ALX80P6-RHO Storeroom Cylindrical Lock, Rhodes Lever, 6 Pin Schlage "C" Keyway, Keyed Different

  • SKU: ALX80P6RHO626
Schlage ALX80P6-RHO-626
Schlage ALX80P6-RHO-626
Schlage ALX80
Schlage ALX80P6-RHO Storeroom Cylindrical Lock, Rhodes Lever, 6 Pin Schlage "C" Keyway, Keyed Different
Schlage ALX80P6-RHO-606
Schlage ALX80P6-RHO-613
Schlage ALX80P6-RHO-619
Schlage ALX80P6-RHO-622
Schlage ALX80-P6-RHO-605
Schlage ALX80-P6-RHO-612
Schlage ALX80-P6-RHO-625
Schlage ALX80-P6-RHO-643E
All SCHLAGE Products

Schlage ALX80P6-RHO Storeroom Cylindrical Lock, Rhodes Lever, 6 Pin Schlage "C" Keyway, Keyed Different

  • SKU: ALX80P6RHO626
  • ✓
    In Stock
    In Stock
Your Price
Dhs. 1,178.00 /ea
Finish: US26D-626 Satin Chrome

Schlage ALX80-P6-RHO Storeroom Cylindrical Lock, Field Selectable Vandlgard, Rhodes Lever, 6 Pin Schlage C Keyway, Keyed Different, [2] Keys, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 2, Non-Handed

Schlage's ALX80P6-RHO delivers commercial-grade security for restricted-access storeroom environments with adjustable Vandlgard anti-tampering features. The Rhodes lever operates smoothly with a precision 6-pin Schlage "C" keyway system, configured keyed-different with two keys included. Certified Grade 2 for institutional use, this versatile lock installs on either left or right-hand doors without modification. Engineered with standard 2-3/4 inch backset and 4-7/8 inch strike compatibility, it integrates seamlessly into existing commercial door assemblies. Trusted by facilities managers for reliable access control and durability in demanding applications.

ALX80 Single Cylinder Deadbolt Function, Storeroom lock

  • Key cylinder outside; plain lever inside; deadlatch
  • Outside lever always fixed
  • Key can retract the latch
  • Field selectable Vandlgard® feature
  • Inside lever always free for immediate egress
Manufacturer Schlage
Grade Grade 2
Installation Commercial
Origin Mexico
Unit of Measure Each
UL Listing Type UL/cUL
ANSI Number A156.2-2011 Series 4000, Grade 2
Limited Warranty 10 Years
Fire Rated 3 Hours {A}
ADA Compliance Yes



Function 80 Storeroom Lock
Function Family Storeroom
ANSI Function F86 - Storeroom
Lever/Knob Design RHO Rhodes Lever
Lever/Knob Design Family Straight Return Lever
Rose/Escutcheon Design 3-7/16" Rose Diameter
Rose/Escutcheon Dimensions Rhodes
Cylinder Type Conventional Cylinder
Num Pins 6
Key(s) Cut
Num of Keys 2
Handing Non-handed
Door Thickness 1-3/8" - 1-3/4"
Std. Latch Number 47267042
Std. Latch Type Deadlatch
Std. Latch Backset Dim 2-3/4"
Latch Bore Diameter 7/8 In.
Lock Face Size 1-1/8 In. x 2-1/4 In.
Bolt Projection 1/2 In.
Bore Hole Diameter 2-1/8 In.
Std. Strike Number 47267101
Std. Strike Type ANSI Strike
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Combination
Product Type Cylindrical Lock
