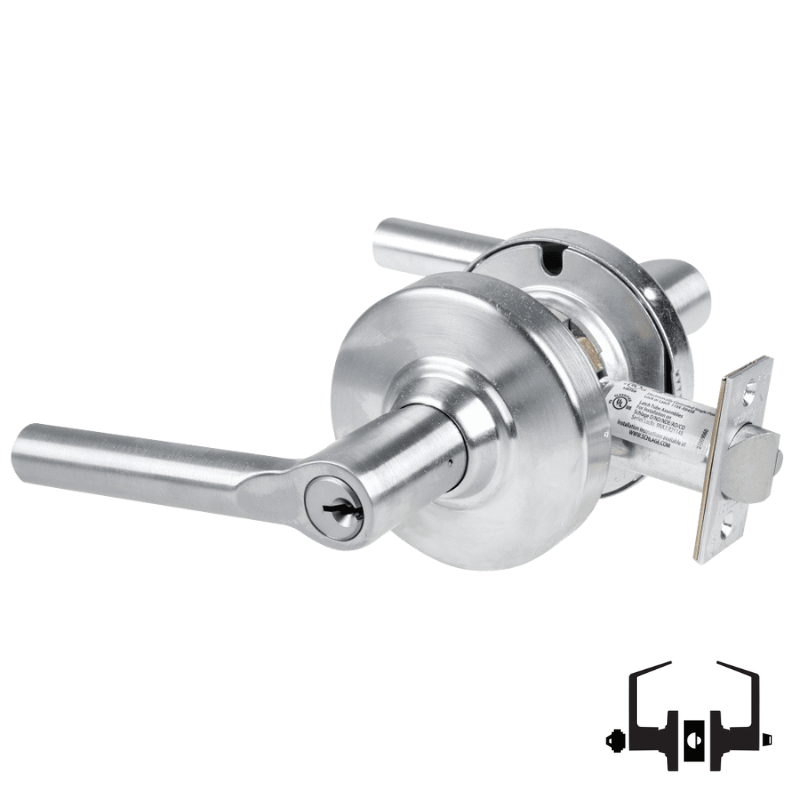

Schlage ALX53P6-BRW Entrance Cylindrical Lock, Broadway Lever, 6 Pin Schlage "C" Keyway, Keyed Different

  • SKU: ALX53P6BRW626

Schlage ALX53P6-BRW Entrance Cylindrical Lock, Broadway Lever, 6 Pin Schlage "C" Keyway, Keyed Different

  • SKU: ALX53P6BRW626
  • In Stock
    In Stock
Your Price
Dhs. 1,178.00 /ea
Finish: US26D-626 Satin Chrome

Schlage ALX53-P6-BRW- Entrance Cylindrical Lock, Field Selectable Vandlgard, Broadway Lever, 6 Pin Schlage C Keyway, Keyed Different, [2] Keys, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 2, Non-Handed

The Schlage ALX53P6-BRW entrance cylindrical lock delivers commercial-grade security with professional-grade reliability. This Grade 2 lock features a Broadway lever design paired with a 6-pin Schlage C keyway for enhanced pick resistance. Field-selectable Vandlgard functionality provides flexible security configurations to match your specific access requirements. The non-handed design simplifies installation across various door orientations, while the 2-3/4 inch backset and 4-7/8 inch strike accommodate standard commercial door preparations. Includes two keys, each keyed different for individual access control. Ideal for office entrances, retail spaces, and institutional applications demanding dependable performance.

ALX53 Single Cylinder Deadbolt Function, Entrance lock

  • Key cylinder outside; push/turn button inside; deadlatch
  • Inside button locks outside lever by pushing button or pushing and turning button
  • Pushed button: unlock with key outside or by rotating inside lever
  • Pushed/turned button: key outside retracts latch only; unlock by returning inside button to home position then using key or rotating inside lever
  • Field selectable Vandlgard® feature
  • Inside lever always free for immediate egress
Manufacturer Schlage
Grade Grade 2
Installation Commercial
Origin Mexico
Unit of Measure Each
UL Listing Type UL/cUL
ANSI Number A156.2-2011 Series 4000, Grade 2
Limited Warranty 10 Years
Fire Rated 3 Hours {A}
ADA Compliance Yes



Function 53 Entrance Lock
Function Family Entrance
ANSI Function F109 - Entry/Office
Lever/Knob Design BRW Broadway Lever
Lever/Knob Design Family Straight Lever
Rose/Escutcheon Design 3-7/16" Rose Diameter
Rose/Escutcheon Dimensions Rhodes
Cylinder Type Conventional Cylinder
Num Pins 6
Key(s) Cut
Num of Keys 2
Handing Non-handed
Door Thickness 1-3/8" - 1-3/4"
Std. Latch Number 47267042
Std. Latch Type Deadlatch
Std. Latch Backset Dim 2-3/4"
Latch Bore Diameter 7/8 In.
Lock Face Size 1-1/8 In. x 2-1/4 In.
Bolt Projection 1/2 In.
Bore Hole Diameter 2-1/8 In.
Std. Strike Number 47267101
Std. Strike Type ANSI Strike
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Combination
Product Type Cylindrical Lock
