Description

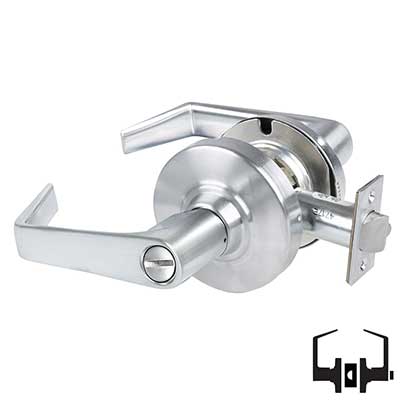

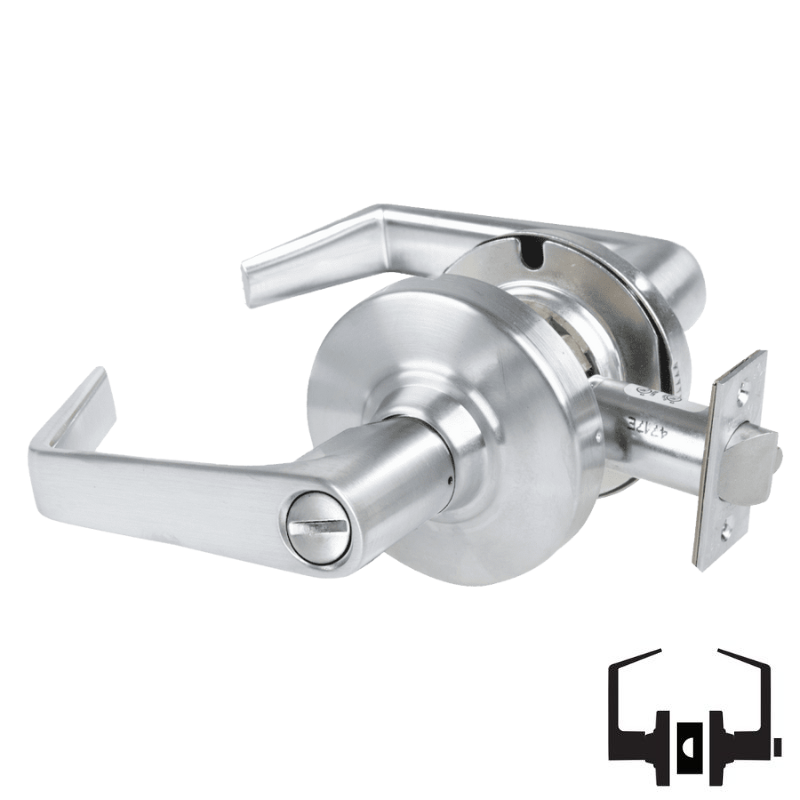

The Schlage ALX40-SAT is a Cylindrical Privacy function lock, with a Saturn Lever, with Field Selectable Vandlgard feature, is Non-Keyed, has a 2 3/4" backset, 4 7/8" ASA Strike, is Non-Handed, is Grade 2, and is available in 626 Satin Chrome or 622 Matte Black finish.
Schlage ALX40 Bath/Bedroom Privacy Lock - Outside lever fixed. Entrance by key only. The inside lever is always unlocked.
ALX Series Grade 2 Cylindrical Lock
A first of it's kind, Schlage ALX Series is modular in design creating new ways to order, configure and utilize a lock. Whether purchased configured or as chassis, function, and lever kits, you gain extreme installation simplicity, exceptional durability, expanded cylinder support, and maximum flexibility.
Product Specs
Manufacturer | Schlage |
Grade | Grade 2 |
Installation | Commercial |
Origin | Mexico |
Unit of Measure | Each |
UL Listing Type | UL/cUL |
ANSI Number | A156.2-2011 Series 4000, Grade 2 |
Limited Warranty | 10 Years |
Fire Rated | 3 Hours {A} |
ADA Compliance | Yes |
Technical Specs
Function | 40 Bed Bathroom Privacy Lock |
Function Family | Privacy |
ANSI Function |
F76 - Privacy |
Lever/Knob Design | SAT Saturn Lever |
Lever/Knob Design Family | Straight Return Lever |
Rose/Escutcheon Design |
3-7/16" Rose Diameter |
Rose/Escutcheon Dimensions | Rhodes |
Cylinder Type |
Non-Keyed |
Handing | Non-handed |
Door Thickness | 1-3/8" - 1-3/4" |
Std. Latch Number | 47267038 |
Std. Latch Type | Springlatch |
Std. Latch Backset Dim | 2-3/4" |
Latch Bore Diameter | 7/8 In. |
Lock Face Size | 1-1/8 In. x 2-1/4 In. |
Bolt Projection | 1/2 In. |
Bore Hole Diameter | 2-1/8 In. |
Std. Strike Number | 47267101 |
Std. Strike Type | ANSI Strike |
Std. Strike Height | 4-7/8" |
Std. Strike Width | 1-1/4" |
Screws | Combination |
Product Type | Cylindrical Lock |
