Sargent SA196-V01-US26D Mortise Retrofit Indicator Kit for Sectional Trim with Thumbturn, For Series 8200/7800, Interior Displays Icons Only in Green & Red, Satin Chrome Finish

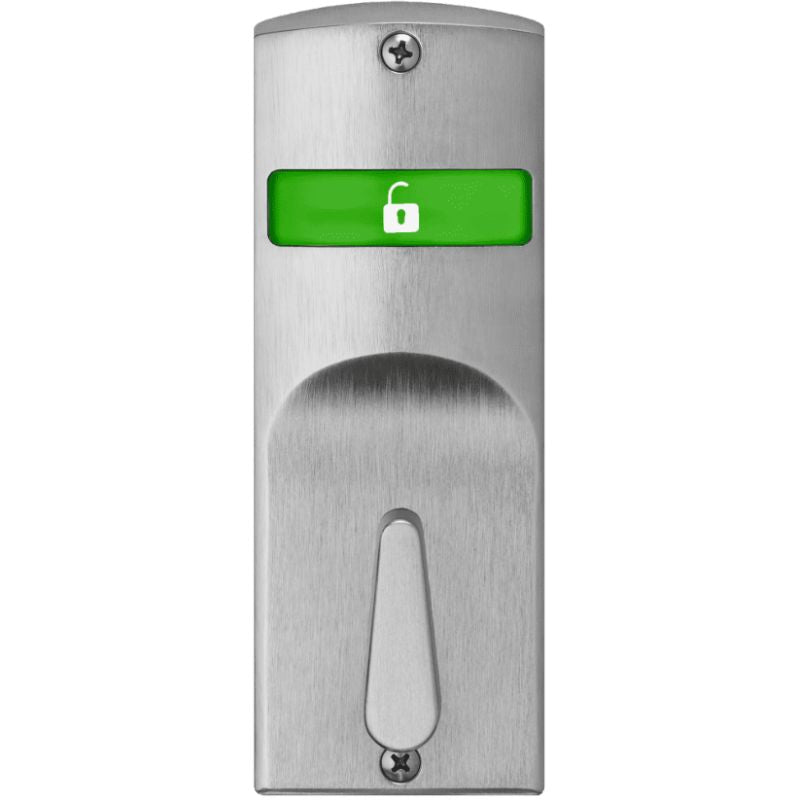

The Sargent SA196-US26D Mortise Lock Retrofit Status indicators are for Sargent 7800 and 8200 Series Mortise Locks with Sectional Trim in Sargent 12, 56, 57, 58, 65, 67 Mortise lock functions. The SA196-US26D is Mounted Inside Of the Door, and comes in a variety of Indicator Options, for use with 1 3/4" Thick Doors, is Field Reversible, and comes in a US26D Satin Chrome finish.
- Surface mounted
- Torx security screws provided
- Compatible with select sectional trim rose designs: O, LN, E, TR, CR, CO, TO, E2, E3
- Compatible with all thumb turn designs
- Available with optional directional arrow engraving
- Not compatible with BHW, BHL, or BHD trims
V03 Option Code
- Interior Displays Icons Only in Green & Red
SA196 is Used with Functions:
12, 56, 57, 58, 65, 67
Retrofit/Upgrade Kits
Retrofit/upgrade kits are available for existing applications only. Each kit includes a single side indicator plate with a mechanism, screw pack, plastic template, and instructions.
Kits are handed and easily field reversible. All units are shipped from the factory with a default handing. Handing must be field verified and adjusted as needed per product installation instructions.
Retrofit/upgrade kits with directional engraving must include lock handing and lock function details. Note: Indicators for both sides of the door require two kits
Manufacturer | Sargent |
SKU | SA196 26D V01 |
Installation | Commercial |
Unit of Measure | Each |
Application | Indicator Kit Only |
Finish | 626/US26D |
Finish Description | Satin Chrome |
Finish Family | Matte Silver |
Function | Indicator with Cylinder Prep |
For Use With | Exterior Sectional Mortise Trim |
Product Type | Indicator Kits |
