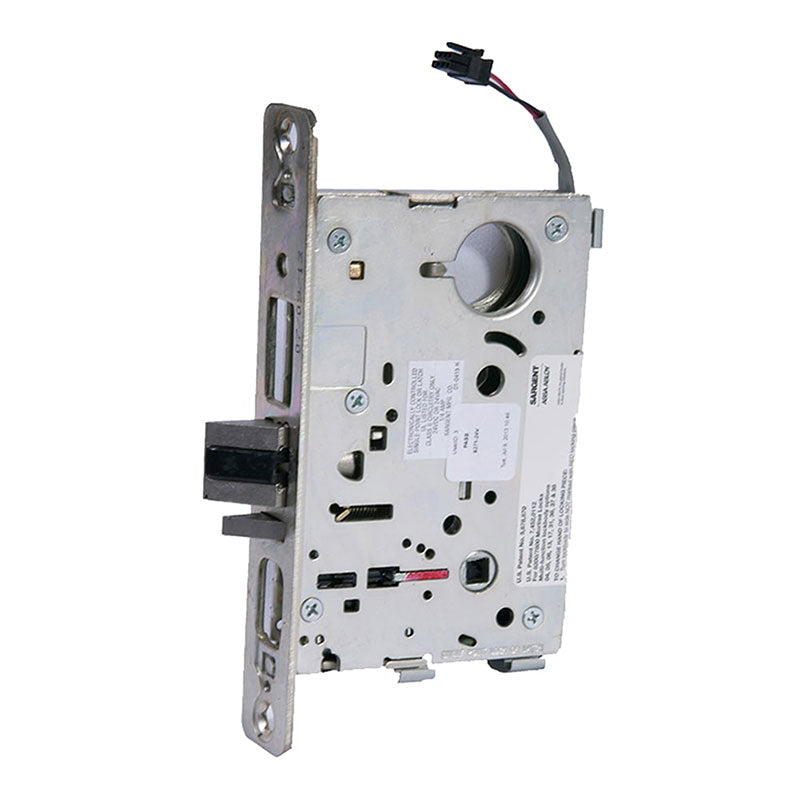

Sargent RX-8271-24V US26D Lock Body Only Electro Mechanical Fail Secure Function, Single Cylinder, Request to Exit, 24VDC, Satin Chrome Finish
The Sargent RX-8271-24V-US26D lock body only features an electro mechanical fail secure function, single cylinder design, and request to exit capability. It operates on 24VDC and has a sleek satin chrome finish.
71 Electric (Fail Secure)
- 71 function — Power ON, unlocks outside lever
- Specify voltage: 24VDC
- Key outside retracts latch bolt
- The lever outside retracts latchbolt, except when locked
- Lever outside can only be locked electronically
- Lever inside always retracts latchbolt
- Auxiliary deadlatch
RX- option: Request-to-Exit or Enter Signaling Switch
-
Two switches mounted internally in lockbody that provide independent monitoring of inside and outside lever rotation
- Available in all functions with non rigid levers
- Not available for the following options: 1-, 3-, 74-
- Not available for the following trims: LS or FE
