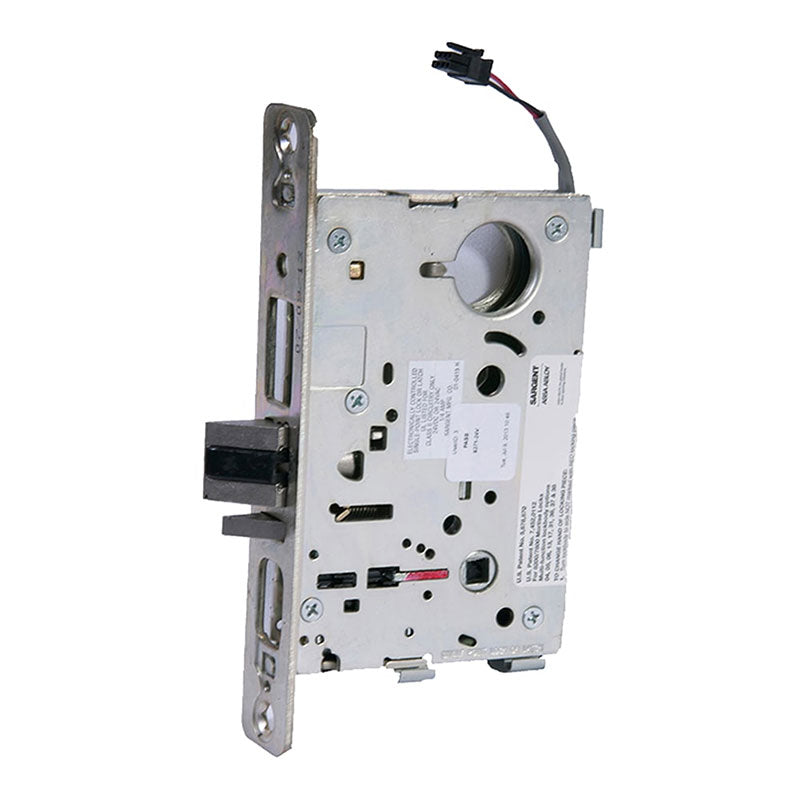

Sargent RX-8270-12V-US26D Lock Body Only, Electro Mechanical Fail Safe Function, Single Cylinder, Request to Exit, 12VDC, Satin Chrome Finish
The Sargent RX-8270-12V-US26D Lock Body Only features an Electro Mechanical Fail Safe Function, along with a Single Cylinder and Request to Exit capabilities. It operates with a 12VDC power source and boasts a sleek Satin Chrome finish.

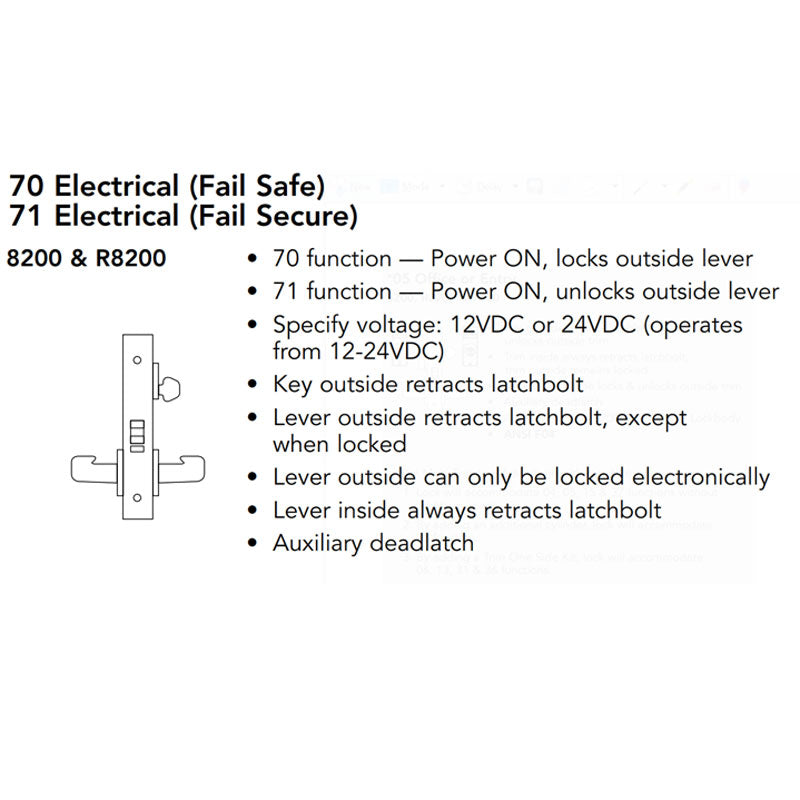

70 Electric (Fail Safe)
- 70 function — Power ON, locks outside lever
- Specify voltage: 12VDC
- Key outside retracts latch bolt
- The lever outside retracts latchbolt, except when locked
- Lever outside can only be locked electronically
- Lever inside always retracts latchbolt
- Auxiliary deadlatch
RX- option: Request-to-Exit or Enter Signaling Switch
-
Two switches mounted internally in lockbody that provide independent monitoring of inside and outside lever rotation
- Available in all functions with non rigid levers
- Not available for the following options: 1-, 3-, 74-
- Not available for the following trims: LS or FE
