Sargent 8715-F-ETL-96 Surface Vertical Rod Exit Device, Passage Function, ETL Trim, 96" Door Height, 33"-36" Bar

  • SKU: 8715F96ETLUS32DLHR
Sargent 8715-F-ETL-96-US32D Surface Vertical Rod Exit Device
Sargent 8715-F-ETL-96-US10B Surface Vertical Rod Exit Device
Sargent 8715-F-ETL-96-US32D Surface Vertical Rod Exit Device
Sargent 8715-F-ETL-96-US10B Surface Vertical Rod Exit Device
All SARGENT Products

Sargent 8715-F-ETL-96 Surface Vertical Rod Exit Device, Passage Function, ETL Trim, 96" Door Height, 33"-36" Bar

  • SKU: 8715F96ETLUS32DLHR
Dhs. 7,874.00/ea
Available (1‑2 Weeks)
1-2 Weeks Lead Time
Finish: US32D Satin Stainless Steel (630)
Handing: LHR - Left Hand Reverse

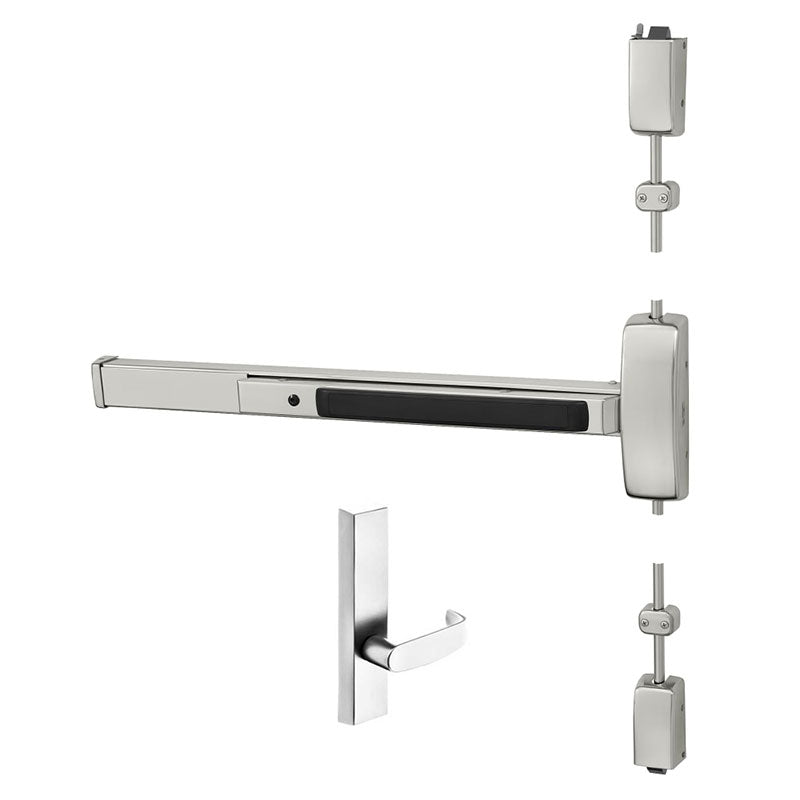

The Sargent 8715-F-ETL Surface Vertical Rod Exit Device Panic Bar comes with an ETL Passage Lever Trim, a 33"-36" bar,  96" high rod and comes In US32D And US10B Finishes.

Manufacturer Sargent
Grade Grade 1
Installation Commercial
Origin USA
Unit of Measure Each
UL Listing Type UL10C & UL305
ANSI Number ANSI/BHMA A156.3
Restrictions None
BAA Qualified Yes
Limited Warranty 5 Years
Fire Rated No
Burglar Rated No
ADA Compliance No



Physical Appearance Wide Stile Pushpad
Device Type Surface Vertical Rod
Mechanical Function Lever Passage
Device Length 36"
Hand LHR or RHR
Top Strike 646
Strike Bottom 624
Includes Trim Yes, ETL
Minimum Stile Size 4 1/2" with Trim, 3 1/2" without Trim
Door Material Metal or Wood
Door Width 33" - 36"
Door Height 96 In.
Door Thickness 1 3/4" to 2 1/4"
Fire Rated No
Product Type Surface Vertical Rod Exit Devices
