- Description
- Has two point latching and is adjustable through the center case.
- Product Specs
- Technical Specs
- Document Center
- Handing Chart
Description

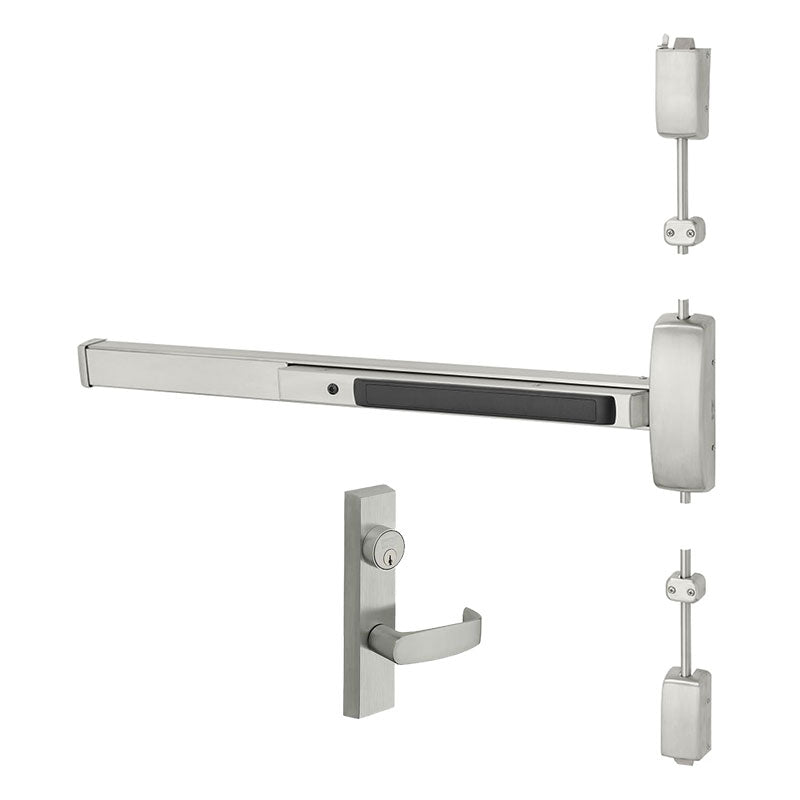

The Sargent 8713-F-ETL-96 Surface Vertical Rod Exit Device are for an 96" Door Height, 33"- 36" Door Width. The Exit Device is Non-Rated and comes with an ETL Trim where the Key Locks or Unlocks the Outside Lever.
8700 Series Surface Vertical Rod Exit Devices
Has two point latching and is adjustable through the center case.
Part of Sargent's full line of exit devices that provide the best combination of simplicty, strength, durability, aesthetics, and innovation. The top and bottom latchbolt projection is adjustable through the center case.
- Door Types: Wood or metal 1-3/4"(44mm) Thick Door; Over 1-3/4" to 2-1/4" specify thickness and order as a 31- prefix. 4-1/2" (114mm) minimum stile with trim and 3-1/2" (44mm) minimum stile without trim
- Door Widths:E Rail - 24" to 32" (61cm to 81cm) No cutting required for 32" door; F Rail - 33" to 36" (84cm to 91cm) No cutting required for 36" door; J Rail - 37" to 42" (94cm to 107cm) No cutting required for 42" door; G Rail - 43" to 48" (110cm to 122cm) No cutting required for 48" door
Product Specs
Manufacturer | Sargent |
Grade | Grade 1 |
Installation | Commercial |
Origin | USA |
Unit of Measure | Each |
UL Listing Type | UL10C & UL305 |
ANSI Number | ANSI/BHMA A156.3 |
Restrictions | None |
BAA Qualified | Yes |
Limited Warranty | 5 Years |
Fire Rated | No |
Burglar Rated | No |
ADA Compliance | Yes |
Technical Specs
Physical Appearance | Wide Stile Pushpad |
Device Type | Surface Vertical Rod |
Mechanical Function | Lever Classroom |
Device Length | 36" |
Hand | LHR or RHR |
Top Strike | 646 |
Strike Bottom | 624 |
Includes Trim | Yes, ETL |
Minimum Stile Size | 4-1/2" with Trim, 3-1/2" without Trim |
Door Material | Metal or Wood |
Door Width | Optional |
Door Height | 96 In. |
Door Thickness | 1-3/4" to 2-1/4" |
Fire Rated | No |
Product Type | Surface Vertical Rod Exit Devices |
Document Center
Handing Chart
