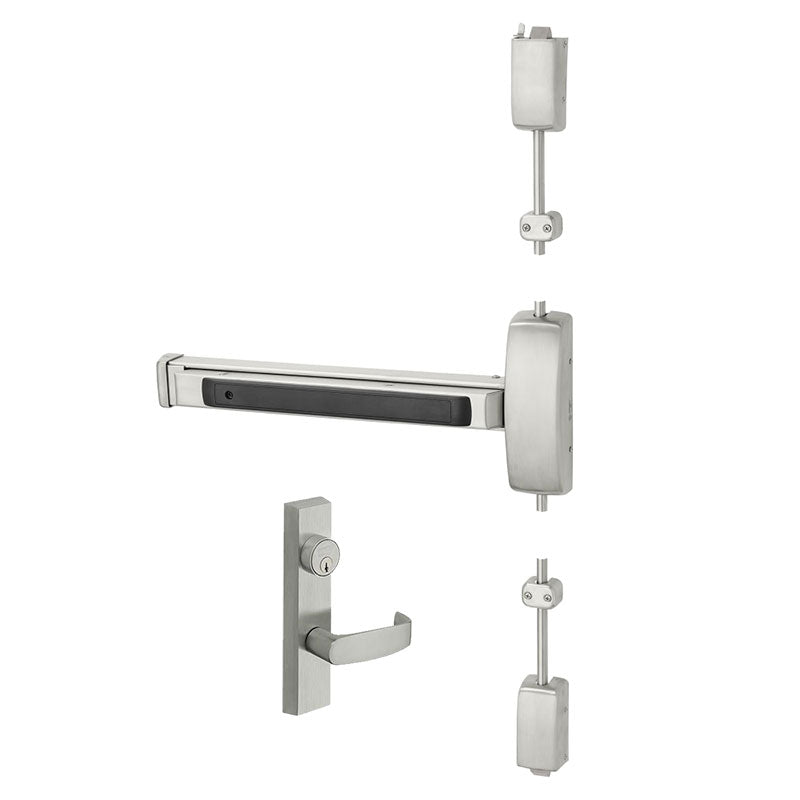

The Sargent 8713-E-ETL-84 is a 32" Surface Vertical Rod Exit Device for use with a 24" - 32" Wide Doors and 84" Door Heights. The Sargent 8713-E-ETL-96 has Hex Key Dogging and comes with an ETL Trim where the Key Locks or Unlocks the Outside Lever.

Sargent 13 Function
Key Outside Unlocks/locks Trim (#41 Cylinder Supplied)

8700 Series Surface Vertical Rod Exit Devices

Has two point latching and is adjustable through the center case.

• Door Types: Wood or metal 1 3/4"(44mm) Thick Door; Over 1 3/4" to 2 1/4" specify thickness and order as a 31- prefix.  4 1/2" (114mm) minimum stile with trim and 3 1/2" (44mm) minimum stile without trim
• Door Widths:E Rail - 24" to 32" (61cm to 81cm) No cutting required for 32" door; F Rail - 33" to 36" (84cm to 91cm) No cutting required for 36" door; J Rail - 37" to 42" (94cm to 107cm) No cutting required for 42" door; G Rail - 43" to 48" (110cm to 122cm) No cutting required for 48" door
