Description

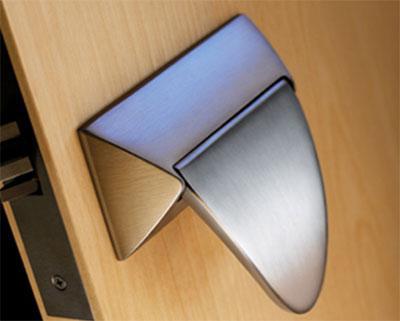

Sargent 28-8265-ALP-US32D Ligature Resistant Privacy Push/Pull Trim Mortise Lock, Field Reversible, US32D/630 Satin Stainless Steel Finish
The Sargent 28-8265-ALP-US32D is a Grade 1 Heavy Duty Ligature Resistant Privacy function Mortise Lock with ALP Push/Pull Trim and comes in US32D Satin Stainless Steel Finish. Sargent 28-8265-ALP-US32D has a 2-3/4" backset, for doors 1-3/4" to 1-7/8" thickness, and can be mounted horizontal (up or down) and vertical (sideways) orientations in the field
Technical Specs | |
Function | 65 Privacy |
ANSI Function |
F22 - Privacy |
Lever/Knob Design |
ALP - Push/Pull Trim |
Cylinder Type |
Non-Keyed |
Handing | Field Reversible |
Door Thickness | 1-3/4" |
Std. Latch Type | Spring Latch (Unguarded) |
Std. Latch Backset Dim | 2-3/4" |
Lock Face Size | 8" x 1-1/4" |
Bolt Projection | 3/4" Latch |
Std. Strike Number | 82-0110 |
Std. Strike Type | ASA |
Std. Strike Height | 4-7/8" |
Std. Strike Width | 1-1/4" |
Screws | Combination |
Product Type | Mortise Lock |
