Description

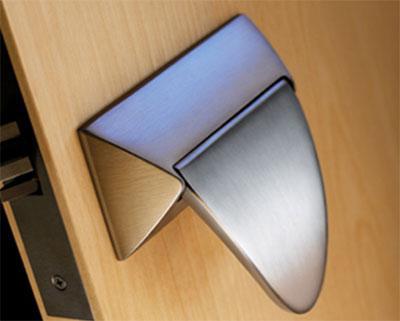

Sargent 28-8252-ALP-US32D Ligature Resistant Institutional Function Push/Pull Trim Mortise Lock, Field Reversible, US32D/630 Satin Stainless Steel Finish
The Sargent 8252-ALP-US32D is a Grade 1 Heavy Duty Ligature Resistant Institutional function Mortise Lock with ALP Push/Pull Trim and comes in US32D Satin Stainless Steel Finish. Sargent 8252-ALP-US32D has a 2-3/4" backset, for doors 1-3/4" to 1-7/8" thickness, and can be mounted horizontal (up or down) and vertical (sideways) orientations in the field
Technical Specs | |
Function | 52 Institutional |
Lever/Knob Design |
ALP Ligature |
Rose/Escutcheon Design |
ALP Ligature |
Cylinder Type |
Conventional Cylinder |
Num Pins | 6 |
Std. Keyway | LA |
Keying | Keyed Different |
Key(s) | Cut |
Num of Keys | 2 |
Handing | Field Reversible |
Door Thickness | 1-3/4 In. |
Std. Latch Type | Combination Latch and Bolt |
Std. Latch Backset Dim | 2-3/4 In. |
Lock Face Size | 8 In. x 1-1/4 In. |
Bolt Projection | 3/4 In. Latch, 1 in. Deadbolt |
Std. Strike Number | 82-0110 |
Std. Strike Type | ASA Strike |
Std. Strike Height | 4-7/8 In. |
Std. Strike Width | 1-1/4 In. |
Screws | Combination |
Product Type | Mortise Lock |
