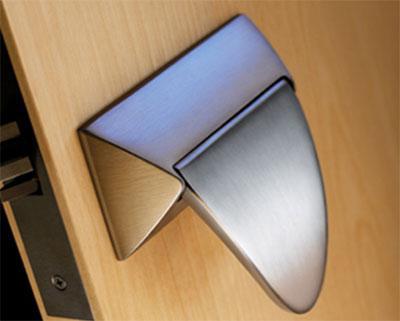

Sargent 8217-ALP-32D
Sargent 8217-ALP-32D
All SARGENT Products

Sargent 8217-ALP-US32D Ligature Resistant Asylum or Institutional Function Mortise Lock, Push/Pull Trim, Field Reversible

  • SKU: 8217ALPUS32D
Dhs. 4,256.00/ea
Available (3‑4 Weeks)
3-4 Weeks Lead Time

Sargent 28-8217-ALP-US32D Ligature Resistant Push/Pull Trim Asylum or Institutional Mortise Lock, Field Reversible, US32D/630 Satin Stainless Steel Finish

The Sargent 8217-ALP-US32D is a Grade 1 Heavy Duty Ligature Resistant Asylum or Institutional function Mortise Lock with ALP Push/Pull Trim and comes in US32D Satin Stainless Steel Finish. Sargent 8217-ALP-US32D has a 2-3/4" backset, for doors 1-3/4" to 1-7/8" thickness, and can be mounted horizontal (up or down) and vertical (sideways) orientations in the field.

Technical Specs
Function 15 Passage Set
ANSI Function
F01 - Passage
Lever/Knob Design
ALP - Push/Pull Trim
Cylinder Type
Non-Keyed
Handing Field Reversible
Door Thickness 1-3/4"
Std. Latch Type Spring Latch (Unguarded)
Std. Latch Backset Dim 2-3/4"
Lock Face Size 8" x 1-1/4"
Bolt Projection 3/4" Latch
Std. Strike Number 82-0110
Std. Strike Type ASA
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Combination
Product Type Mortise Lock
