Description

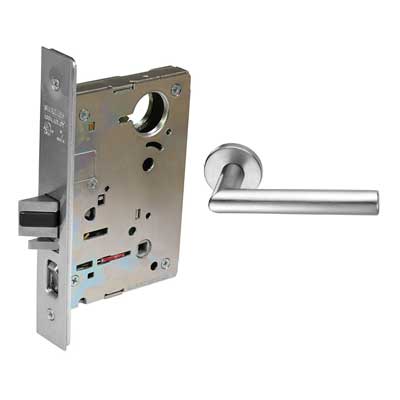

The 8205-LNMI-26D mortise lock comes LA Keyway Standard with an Office Or Entry Mortise Lock Function, an LN Rose, and MI Lever in Brushed Chrome Finish.
Product Specs
Manufacturer | Sargent |
Grade | Grade 1 |
Origin | USA |
Unit of Measure | Each |
BAA Qualified | Yes |
Limited Warranty | 10 Years |
Fire Rated | 2 Hours {B} |
Technical Specs
Function | 05 Office Entry |
ANSI Function |
F04 - Entry/Office |
Lever/Knob Design |
L - Lever |
Rose/Escutcheon Design |
LNMI |
Cylinder Type |
Conventional Cylinder |
Num Pins | 6 |
Std. Keyway | LA |
Keying | Keyed Different |
Key(s) | Cut |
Num of Keys | 2 |
Handing | Field Reversible |
Door Thickness | 1-3/4 In. |
Std. Latch Type | Dead Latch (Guarded) |
Std. Latch Backset Dim | 2-3/4 In. |
Lock Face Size | 8 In. x 1-1/4 In. |
Bolt Projection | 3/4 In. Latch |
Std. Strike Number | 82-0110 |
Std. Strike Type | ASA Strike |
Std. Strike Height | 4-7/8 In. |
Std. Strike Width | 1-1/4 In. |
Screws | Combination |
Product Type | Mortise Lock |
Document Center
Handing Chart
