Sargent 8205-LNMD-26D Office or Entry Function Mortise Lock, LA Keyway, LN Rose, MD Lever, Satin Chrome

  • SKU: 8205LNMD26DLH

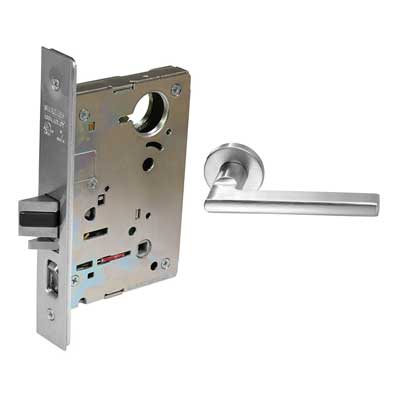

Sargent 8205-LNMD-26D Office or Entry Function Mortise Lock
Sargent 8205-LNMD-26D Office or Entry Function Mortise Lock
All SARGENT Products

Sargent 8205-LNMD-26D Office or Entry Function Mortise Lock, LA Keyway, LN Rose, MD Lever, Satin Chrome

  • SKU: 8205LNMD26DLH
Dhs. 2,769.00/ea
Available (1‑2 Weeks)
1-2 Weeks Lead Time
Handing: LH - Left Hand
Handing Guide:
handing chart image

The 8205-LNMD-26D comes LA Keyway Standard with an Office Or Entry Mortise Lock Function, an LN Rose, and MD Lever in Satin Chrome Finish.

Manufacturer Sargent
Grade Grade 1
Origin USA
Unit of Measure Each
BAA Qualified Yes
Limited Warranty 10 Years
Fire Rated 2 Hours {B}


Function 05 Office Entry
ANSI Function F04 - Entry/Office
Lever/Knob Design L - Lever
Rose/Escutcheon Design LNMD
Cylinder Type Conventional Cylinder
Num Pins 6
Std. Keyway LA
Keying Keyed Different
Key(s) Cut
Num of Keys 2
Handing Field Reversible
Door Thickness 1-3/4 In.
Std. Latch Type Dead Latch (Guarded)
Std. Latch Backset Dim 2-3/4 In.
Lock Face Size 8 In. x 1-1/4 In.
Bolt Projection 3/4 In. Latch
Std. Strike Number 82-0110
Std. Strike Type ASA Strike
Std. Strike Height 4-7/8 In.
Std. Strike Width 1-1/4 In.
Screws Combination
Product Type Mortise Lock
Product Cut Sheet

Cylinder Mortise Handing Chart
