Technical Specs
Device Type | Trim |
Handed | Yes |
Electric Options | Fail-Secure |
Trim Type | Electrified Lever |
Trim Design | MU - Lever |
Fire Rated | No |
Reversible | Yes |
Product Type | Exit Device Trim |
Product Specs
Manufacturer | Sargent |
Grade | Grade 1 |
Unit of Measure | Each |
Application | For 8400 and 8600 Series Concealed Vertical Rod Exit Devices |
Base Material | Brass |
ADA | Yes |

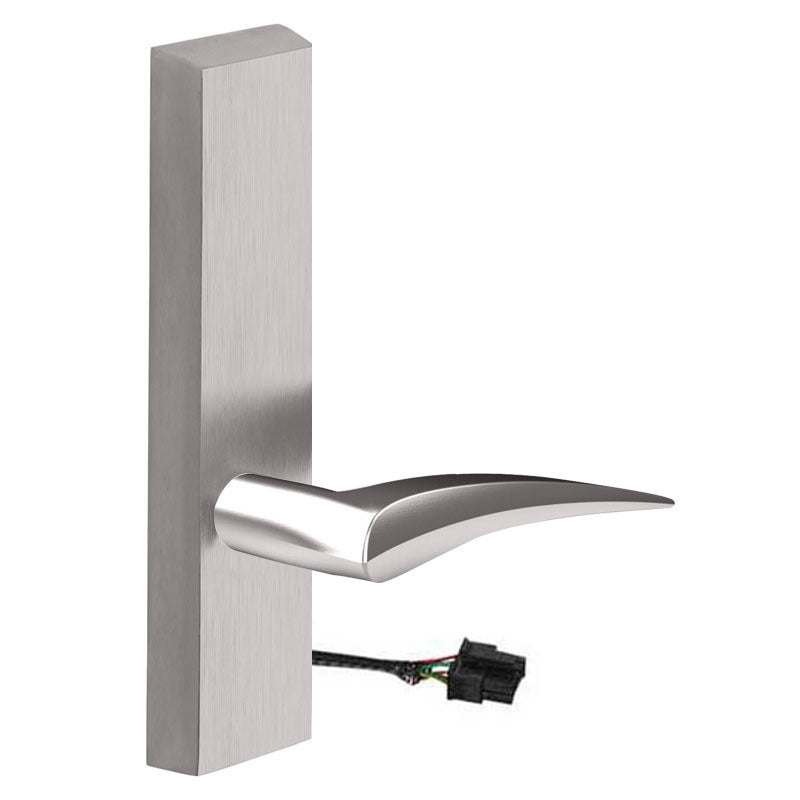

Sargent 774-4-ETMU-24V Electrified Lever Trim, "ET" MU Lever, Fail Secure, 24V, For 8400 and 8600 Series Exit Devices, No Cylinder
The Sargent 774-4-ETMU-24V Electrified Exit Device Trim features the MU Lever design and operates on 24V, providing a Fail Secure lock function. This trim is compatible with 8400 and 8600 Series Exit Devices, and does not require a cylinder.
This Trim Works With:
- Sargent 8474 Concealed Vertical Rod Exit Devices
- Sargent 8674 Concealed Vertical Rod Exit Devices
- Sargent 8610 Multi-Function Concealed Vertical Rod Exit Devices
Electrified ET Trim Voltage Specify: 24 VDC
Function Number | Description & Cylinder Info(1-3/4" Door) | ANSI Type 1 8800 Panic |
74 | Electrified ET Trim - Fail Secure Power Off, Locks Lever (No Cylinder) |
8874 x ET_ |
