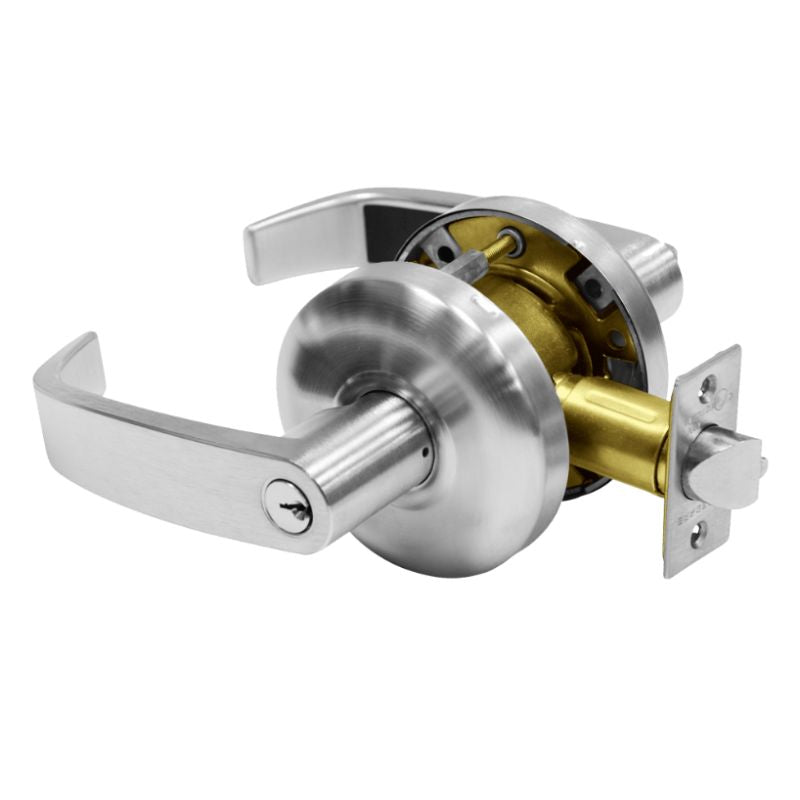

Sargent 65G37-KL Cylindrical Lever Lock Classroom Function, LA Keyway, Keyed Different

  • SKU: 2865G37KLUS26DLAKD

Sargent 65G37-KL Cylindrical Lever Lock Classroom Function, LA Keyway, Keyed Different

  • SKU: 2865G37KLUS26DLAKD
Sale priceDhs. 906.00/ea
Available (2 Weeks)
2 Weeks Lead Time
Finish: US26D Satin Chrome (626)

Sargent 65G37-KL Cylindrical Lever Lock Classroom Function, K Rose, L Lever, LA Keyway, Keyed Different, Optional Finishes

The Sargent 65G37 Cylindrical Lever Lock Classroom Function Is a Medium Duty Grade 2 Commercial Door Lock That Is Available In Different Lever Designs, Finishes, and comes with an LA Keyway that is Keyed Different. Sargent 65G37 Cylindrical Lever Lock Is Ideal For Use In Retail Spaces, Office Buildings, and Housing.

Classroom Function:

• Deadlocking latch
• Latch by either lever unless outside lever is locked by key
• Key in outside lever locks or unlocks outside lever
• Inside lever always operative
• ANSI/BHMA F84

6500-Line Bored Lever Locks

The SARGENT 6500 Line is a standard duty key-in-lever lock designed to exceed the requirements of ANSI A156.2 Series 4000 Grade 2.

  • For Doors: 1-3/8" (35mm) to 1-3/4" (44mm) only
  • Backset: 2-3/4" (70mm) standard; 2-3/8" (60mm) optional (20- Prefix)
  • Cylindrical Housing: Steel zinc dichromate finish
  • Front: Wrought brass and stainless steel;
  • 2-1/4" (57mm) x 1-1/8"(29mm)
  • Strike: 600 Curved Lip, Brass or Stainless Steel Standard, 808 ANSI Curved Lip available (28- prefix), 505 Full Lip strike available (14- prefix)
  • Hand: Universal, not handed
  • Latch: Brass 1/2" (13mm) throw
  • Keys: Two, nickel silver
  • Cylinder: Brass, 6 pins, LA keyway standard
  • Finishes : 3, 4, 10, 10B, 26, 26D
  • (No Split Finish)
  • Door Prep: ANSI A115.2 (161) Modified
  • Minimum Stile: 4-1/2" (114mm)
Function 37 Classroom Function
Function Family Classroom
ANSI Function
Classroom
Lever/Knob Design L Lever
Lever/Knob Design Family Straight Return Lever
Rose/Escutcheon Design
3-3/8" Rose Diameter
Rose/Escutcheon Dimensions 3-3/8"
Cylinder Type LA Keyway
Key(s) Optional
Num of Keys 2
Handing Non-handed
Door Thickness 1-3/8" to 1-3/4"
Std. Latch Number 103121
Std. Latch Type Deadlatch
Std. Latch Backset Dim 2-3/4"
Latch Bore Diameter 1"
Lock Face Size 1-1/8" x 2-1/4"
Bolt Projection 1/2"
Bore Hole Diameter 2-1/8"
Std. Strike Number 808
Std. Strike Type ANSI Curved Lip Strike
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Dust Box None
Screws Wood/Machine Screws
Product Type Cylindrical Lock
