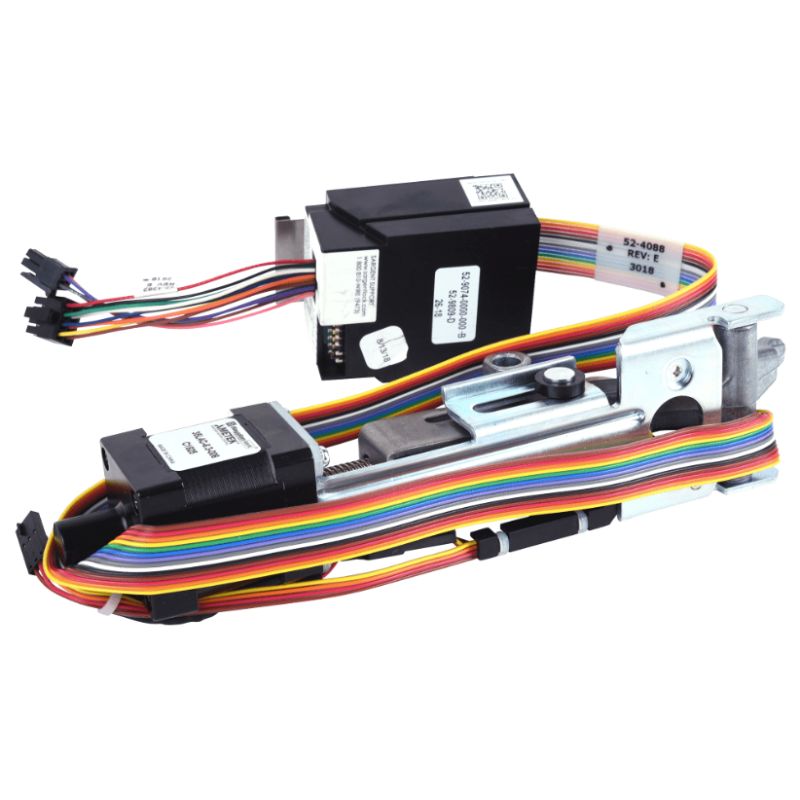

Sargent 55-M56AG Electric Latch Retraction Retrofit Motor Kit, With Signal Switch, G-Rails 43-48" Device, For 80 Series Exit Devices, More Details See Document Center

The Sargent 55-M56AG Electric Latch Retraction Retrofit Motor Kit, equipped with a Signal Switch and G-Rails, is designed for use with 80 Series Exit Devices between 43-48 inches.

Feature Available: 55- Non-Contact Request to Exit switch

• Motor driven electric retraction for smooth precise operation.
• Retrofits standard mechanical rail.
• M56AG - for doors 43-48"
• Retrofit Kits can only be added to 80 Series exit devices manufactured after 2006
  & P series exit device. not available on FM8700 Series exit devices.
• Amount of rail retraction is automatically controlled by the 56- circuitry; System actively monitors its position and adjusts itself
• Digital retraction timer (0-20 seconds; factory setting is 5 seconds.
• Can be used for continuous and intermittent use.
• Power Requirements: 24VDC regulated/filtered power supply.
• Current draw: .6A during retraction and .25A maintained in dogged hold position.
• Requires 1A at 24VDC regulated/filtered power supply.

M56A Is compatible with:

• 8800 Series Rim Exit Devices
• 8900 Series Mortise Exit Devices
• 8700 Surface Vertical Rod Exit Devices
• 8600 Series Concealed Vertical Rod Exit Devices
• 8500 Narrow Design Rim Exit Devices
• 8300 Narrow Design Mortise Exit Devices
• 8400 Narrow Design Concealed Vertical Rod Exit Devices
