Description

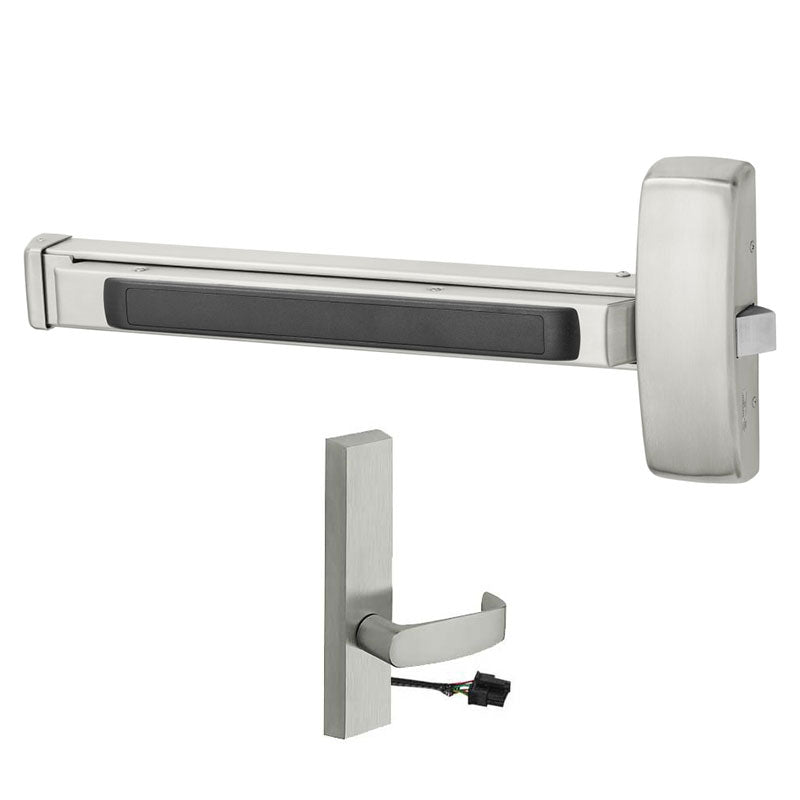

Sargent 55-56-8874-E-ETL-24V-US32D-LHR Rim Exit Device Electrified "ET" Trim L Lever, Fail Secure, 24V Power off locks Lever (No Cylinder), 56 Remote Latch Retraction, 55 Request To Exit, 24-32" Device, Satin Stainless Steel
Sargent 55-56-8874-E-ETL-24V-US32D is a 24-32" Rim Exit Device that has an Electrified "ET" Trim with an L Lever, that is 24 Volts in Fail Secure function - Power Off Locks Lever (No Cylinder). The Sargent 55-56-8874-E-ETL-24V-US32D also has a (56) Remote Latch Retraction feature, and a (55) Request To Exit feature, is handed, and comes in US32D Stainless Steel Finish.
55- Request-to-Exit Option
SARGENT Request-to-Exit Signal Switch option for exit devices provides push rail monitoring for a variety of applications; such as to sound an alarm, initialize a delayed egress system, or de-energize an electromagnetic lock.
56- Electric Latch Retraction Option
SARGENT’s Electric Latch Retraction exit device is the perfect choice for high-traffic egress doors that require access control. This non-handed exit device rail is durable and easy to install. It utilizes a latch retraction motor rather than a solenoid, ensuring quiet operation ideal for locations such as conference rooms, theaters, and libraries. Once retracted, the door functions in a push/pull manner.
The 56-exit device can be dogged for momentary ingress and egress and is commonly used in conjunction with an automatic door operator. The device can be dogged continuously on fire-rated devices that are tied into the building’s fire detection system
8800 Series Rim Exit Devices
The 8800 series is designed for standard-width stile applications on wood and metal doors.
The 8800 Series is a reversible rim exit device that sets the industry standards for durability and reliability. It is part of Sargent's full line of exit devices.
Door Types: Wood or metal 1-3/4"(44mm) Thick Door; Over 1-3/4" specify thickness and order as a 31- prefix.
Door Widths:
- E Rail - 24" to 32" (61cm to 81cm) No cutting required for 32" door
- F Rail - 33" to 36" (84cm to 91cm) No cutting required for 36" door
- J Rail - 37" to 42" (94cm to 107cm) No cutting required for 42" door
- G Rail - 43" to 48" (110cm to 122cm) No cutting required for 48" door
Features:
- Single-point rim latching device
- Single door & double door applications with mullions
- Quiet operation and solid security
- Devices are ANSI A156.3 - Grade 1
- UL Fire and Panic listed
Product Specs
| Manufacturer | Sargent |
| SKU | 5556-8874E ETL 24V US32D |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| UL Listing Type | UL10C & UL305 |
| ANSI Number | ANSI/BHMA A156.3 |
| Restrictions | None |
| BAA Qualified | Yes |
| Limited Warranty | 5 Years |
| Fire Rated | No |
| Burglar Rated | No |
| ADA Compliance | No |
| Finish | 630-US32D |
| Finish Description | Satin Stainless Steel |
| Finish Family | Matte Silver |
Technical Specs
| hysical Appearance | Wide Stile Pushpad |
| Device Type | Rim |
| Mechanical Function | Device to Accept Electrified Trim |
| Device Length | 32" |
| Hand | Non-Handed |
| Switch Type | Request to Exit |
| Electric Options | Electric Latch Retraction |
| Dogging Options | Less Dogging |
| Includes Trim | Yes |
| Trim Type | 774-8 ETL |
| Includes Cylinder(s) | No |
| Cylinder Type | Non-Keyed |
| Minimum Stile Size | 4 3/4" |
| Door Material | Metal or Wood |
| Door Width | 28" to 32" |
| Door Thickness | 1 3/4" - 2 1/4" |
| Fire Rated | No |
| Reversible | Yes |
| Product Type | Rim Exit Devices |
