Description

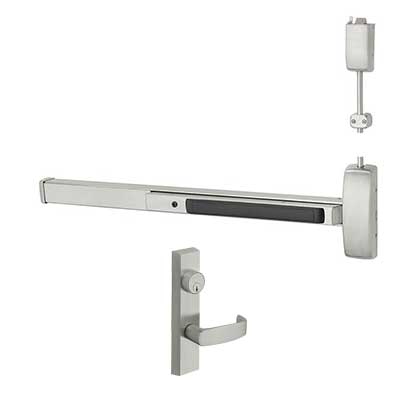

The Sargent 55-12-NB8713-G-ETL-84 is a Top Latching Surface Vertical Rod Fire Rated Exit Device, has an ETL Lever trim, Key Locks Or Unlocks Outside Lever. The Sargent 55-12-NB8713-F-ETL-84 has a Request to Exit Option, 43"-48" rail length that is Grade One making it Ideal For Commercial And Institutional Facilities.
NB8700 Series Surface Vertical Rod Exit Devices
The NB8700 Series is a top latch surface vertical rod exit device.
The NB8700 Series is part of Sargent's full line of exit devices that provide the best combination of simplicity, strength, durability, aesthetics, and innovation. This series has both rated and non-rated openings.
- Door Types: Wood or metal 1-3/4"(44mm) Thick Door; Over 1-3/4" to 2-1/4" specify thickness and order as a 31- Prefix; 4-1/2" (114mm) minimum stile with trim and 3-1/2" (44mm) minimum stile without trim
- Door Widths: E Rail - 24" to 32" (61cm to 81cm) No cutting required for 32" door; F Rail - 33" to 36" (84cm to 91cm) No cutting required for 36" door; J Rail - 37" to 42" (94cm to 107cm) No cutting required for 42" door; G Rail - 43" to 48" (110cm to 122cm) No cutting required for 48" door
Product Specs
| Manufacturer | Sargent |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| UL Listing Type | UL10C & UL305 |
| ANSI Number | ANSI/BHMA A156.3 |
| Restrictions | None |
| BAA Qualified | Yes |
| Limited Warranty | 5 Years |
| Fire Rated | 3 Hours {A} |
| Burglar Rated | No |
| ADA Compliance | No |
Technical Specs
| Physical Appearance | Wide Stile Pushpad |
| Device Type | Surface Vertical Rod |
| Mechanical Function | Lever Classroom |
| Device Length | 48 In. |
| Hand | LHR or RHR |
| Mechanical Options | Less Bottom Rod |
| Top Strike | 646 |
| Includes Trim | YES, ETL TRIM |
| Minimum Stile Size | 4-1/2" with Trim, 3-1/2" without Trim |
| Door Material | Metal or Wood |
| Door Width | 43 In. to 48 In. |
| Door Height | 84 In. |
| Door Thickness | 1-3/4" to 2-1/4" |
| Fire Rated | Yes |
| Product Type | Surface Vertical Rod Exit Devices |
