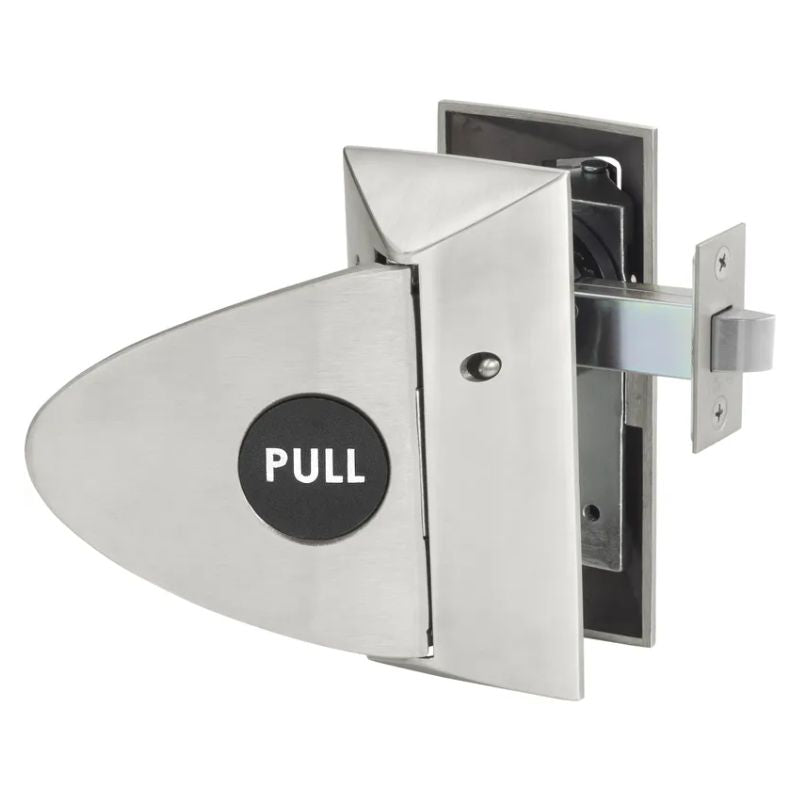

The Sargent 28-HPU65-P-ALP-US32D Push/Pull Privacy Lock is equipped with a 5" backset and a 4 7/8 ASA strike for optimal security. This model also features a labeled push/pull design and is part of the HP Series Healthcare Hardware collection. Additionally, it is made of 630 satin stainless steel for a sleek and durable finish.
HPU65 Privacy Function:
I/S paddle always retracts the latch
O/S paddle retracts latch, except when locked by the inside push button
Closing door unlocks the outside paddle
Includes emergency release
Ideal for bathrooms
Vertical orientation required
Features:
Paddle trim can be mounted in horizontal (up or down) or vertical (sideways) orientations in the field
Easy installation
15 function trim is non-handed; lock body is easily field reversible
Through-bolted trim for stability
Available in 5" backset standard
ANSI/BHMA Grade 1
UL Fire Rating standard on doors up to 4' x 8'
Torx ® and spanner screws optional with ALP
Lead lining is optional: specify 74- option
Covers and paddles are cast stainless steel or brass
