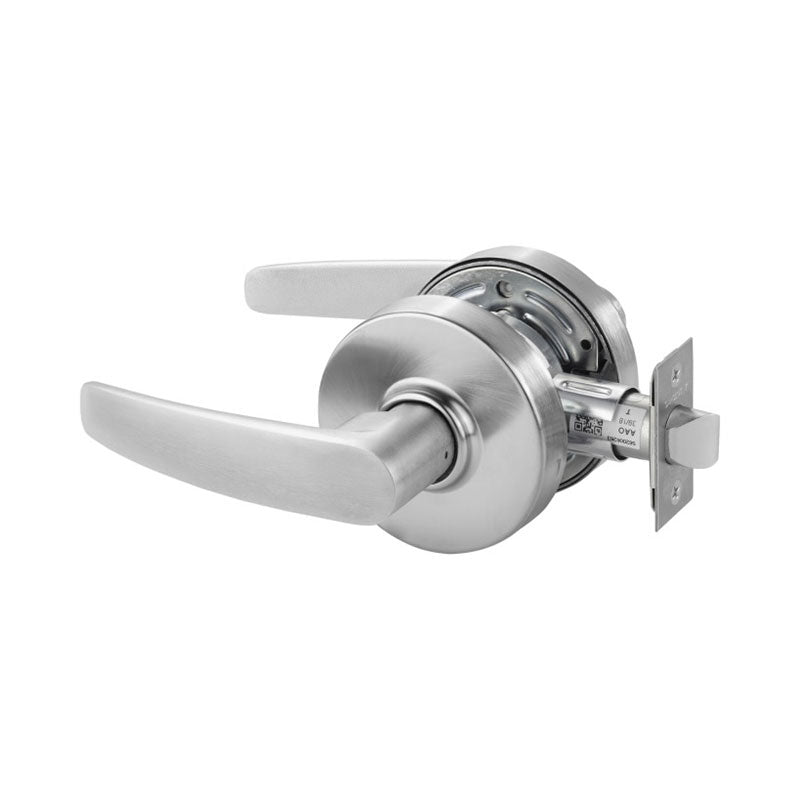

The Sargent 28-7U15-LB is a Passage function cylindrical lever lockset that is Grade 2, Non-Keyed, has an L Rose, with a B Lever, and comes in a variety of finishes.
7-Line Bored Lever Locks
Sargent's 7 Line Bored Lever Locks are designed with a solid feel and a precise lever action.
A key-in-lever lock designed for standard-duty commercial exterior and interior doors in offices, commercial interiors, medical clinics, government facilities, and public buildings. Exceeds ANSI/BHMA A156.2 Standards for cycling and durability.
| Manufacturer | Sargent |
| SKU | 28-7U15 LB |
| Grade | Grade 2 |
| Installation | Commercial |
| Origin | United States |
| Unit of Measure | Each |
| Base Material | Brass, Bronze |
| UL Listing Type | ANSI A156.2, Series 4000, Grade 2, UL Listed |
| ANSI Number | F75 |
| BAA Qualified | Yes |
| Limited Warranty | 5 Year Warranty |
| Fire Rated | 3 Hours {A} |
| Burglar Rated | No |
| Function | 15-Passage |
| Function Family | Passage |
| ANSI Function |
F75 - Passage |
| Lever/Knob Design | B Lever |
| Lever/Knob Design Family | Curved Lever |
| Rose/Escutcheon Design |
3 3/8" Rose Diameter |
| Rose/Escutcheon Dimensions | 3 3/8" |
| Cylinder Type |
Non-Keyed |
| Handing | Non-handed |
| Door Thickness | 1 3/4" |
| Std. Latch Number | 194493 |
| Std. Latch Type | Spring latch |
| Std. Latch Backset Dim | 2 3/4" |
| Latch Bore Diameter | 7/8" |
| Lock Face Size | 1 1/8 x 2 1/4" |
| Bolt Projection | 1/2" |
| Bore Hole Diameter | 2 1/8" |
| Std. Strike Number | 808 |
| Std. Strike Type | ANSI Curved Lip Strike |
| Std. Strike Height | 4 7/8" |
| Std. Strike Width | 1 1/4" |
| Dust Box | None |
| Screws | Wood/Machine Screws |
| Product Type | Cylindrical Lock |
