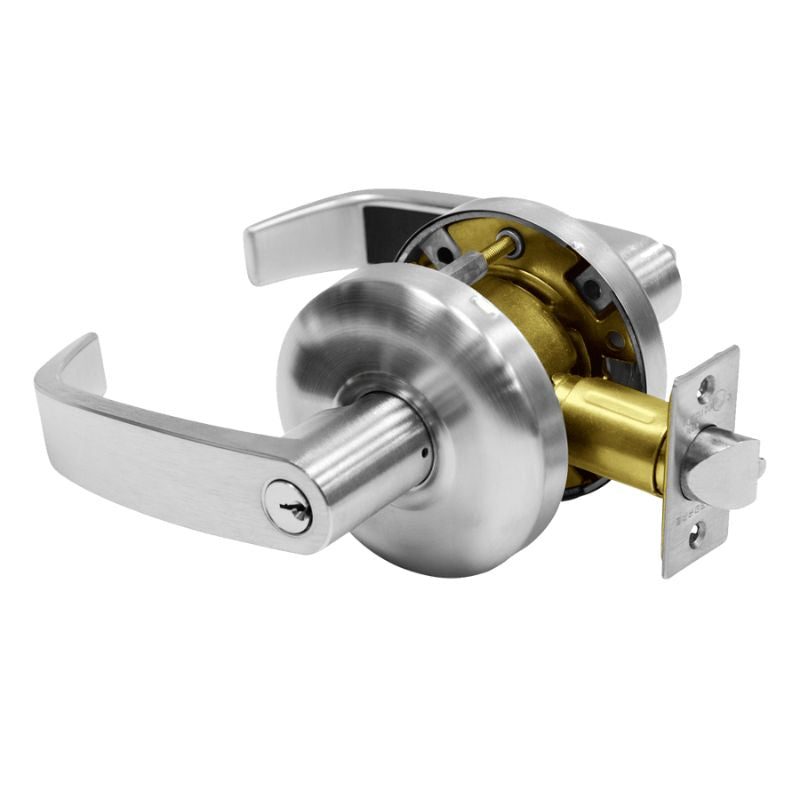

Sargent 28-65G05-KL-LA-KD Cylindrical Lever Lock Entrance Office Function, K Rose, L Lever, LA Keyway, Keyed Different
The Sargent 65G05 Cylindrical Lever Lock Entrance Office Function Is a Medium Duty Grade 2 Commercial Door Lock That Is Available In Different Lever Designs, Finishes, and comes with an LA Keyway that is Keyed Different. Sargent 65G05 Cylindrical Lever Lock Is Ideal For Use In Retail Spaces, Office Buildings, and Housing.
Entrance / Office Function:
• Deadlocking latch
• Latch by either lever unless outside lever is locked by push/turn button in inside lever
• Push button released by key outside or lever inside
• Turn button must be released manually
• Key retracts latch when outside lever is locked
• ANSI/BHMA F109
6500-Line Bored Lever Locks
Windstorm certified and has several function options.
The SARGENT 6500 Line is a standard duty key-in-lever lock designed to exceed the requirements of ANSI A156.2 Series 4000 Grade 2.
- For Doors: 1-3/8" (35mm) to 1-3/4" (44mm) only
- Backset: 2-3/4" (70mm) standard; 2-3/8" (60mm) optional (20- Prefix)
- Cylindrical Housing: Steel zinc dichromate finish
- Front: Wrought brass and stainless steel;
- 2-1/4" (57mm) x 1-1/8"(29mm)
- Strike: 600 Curved Lip, Brass or Stainless Steel Standard, 808 ANSI Curved Lip available (28- prefix), 505 Full Lip strike available (14- prefix)
- Hand: Universal, not handed
- Latch: Brass 1/2" (13mm) throw
- Keys: Two, nickel silver
- Cylinder: LA keyway standard
- Finishes : 3, 4, 10, 10B, 26, 26D
- (No Split Finish)
- Door Prep: ANSI A115.2 (161) Modified
- Minimum Stile: 4-1/2" (114mm)
