Description
Sargent 18-PE8810-G-US32D Wide Stile Rim Exit Device, Dummy Function, Less Trim Exit Only, 42.5-48 Inch Door, "18" Passive Dogging Indicator, Hex Key, Grade 1, Field Reversible, 630 Satin Stainless Steel Finish
The Sargent 18-PE8810-G-US32D Wide Stile Rim Exit Device is a Grade 1 exit-only solution designed for 42.5-48 inch doors where a dummy function and less trim configuration are required. This field reversible rim exit device includes the "18" passive dogging indicator and hex key operation for controlled dogging use. Built for wide stile applications, the device delivers dependable performance in demanding commercial openings while maintaining code-focused operation. Finished in 630 satin stainless steel finish, the Sargent 18-PE8810-G-US32D combines durable construction, practical installation flexibility, and the trusted performance expected from Sargent PE80 series exit devices.
Features
- Sargent 18-PE8810-G-US32D wide stile rim exit device is designed for exit-only applications with a less trim configuration.
- Dummy function setup supports openings where no active outside trim operation is required.
- Sized for 42.5-48 inch door applications.

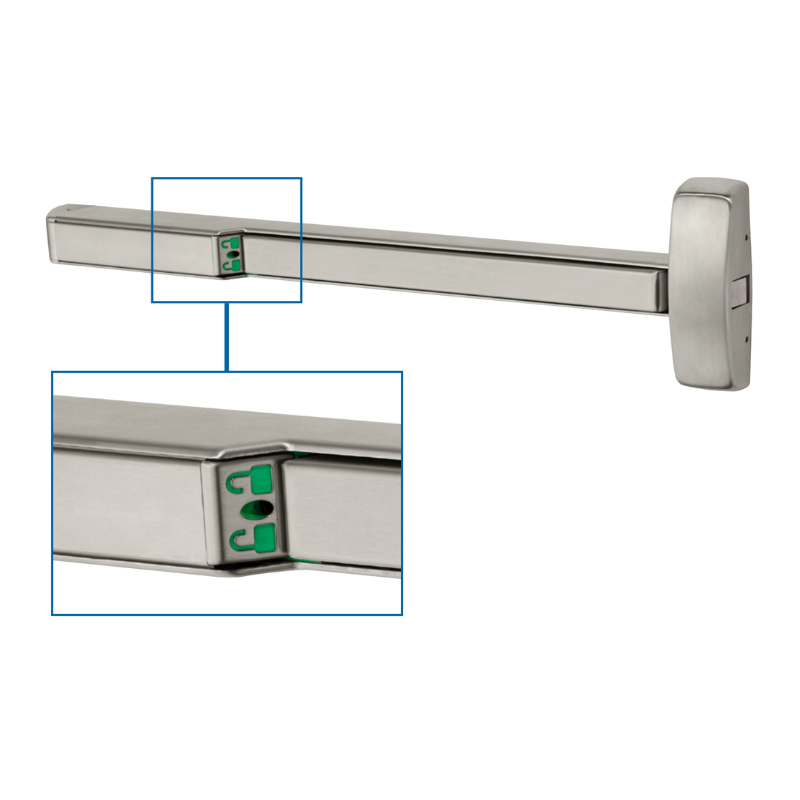

- The "18" passive dogging indicator provides visual indication of dogging status.
- Hex key dogging operation is included.
- Grade 1 construction supports heavy-duty commercial use.
- Field reversible handing allows installation flexibility.
- 630 satin stainless steel finish offers a clean, durable appearance.
Functional Details
This dummy function, less trim, exit-only configuration is intended for openings that require egress from the inside without active outside operation. The rim exit device releases from the inside push rail, while the field reversible design helps simplify handing during installation.
- Field reversible
- Single point rim latching
- Hex key dogging
- ANSI/BHMA A156.3, Grade 1
Rail Sizes
| Stock Size | Door Opening Widths | Remarks |
| E | 24" to 32" (61 cm to 81 cm) | No cutting required for 32" (81 cm) door |
| F | 32.5" to 36" (84 cm to 91 cm) | No cutting required for 36" (91 cm) door |
| J | 36.5" to 42" (94 cm to 107 cm) | No cutting required for 42" (107 cm) door |
| G | 42.5" to 48" (110 cm to 122 cm) | No cutting required for 48" (122 cm) door |
Included Components
This device includes the exit device assembly with hex key dogging and the "18" passive dogging indicator. It is supplied less trim for exit-only use on a 42.5-48 inch door.
Product Specifications
| Manufacturer | Sargent |
|---|---|
| Series | PE80 Series |
| Model | 18-PE8810-G-US32D |
| Base SKU | 18-PE8810-G |
| Product Type | Wide Stile Rim Exit Device |
| Function | Dummy Function |
| Trim Configuration | Less Trim |
| Operation | Exit Only |
| Door Width Compatibility | 42.5-48 Inch Door |
| Dogging | "18" Passive Dogging Indicator, Hex Key |
| Handing | Field Reversible |
| Grade | Grade 1 |
| ANSI Number | ANSI/BHMA A156.3 |
| UL Listing Type | UL Listed for Panic Exit Hardware |
| BAA Qualified | Yes |
| Origin | Made in USA |
| Unit of Measure | Each |
| Limited Warranty | 10 Year Limited Warranty |
| Finish | 630 Satin Stainless Steel Finish |
Technical Specifications
| Series | PE80 |
|---|---|
| Device Type | Rim Exit Device |
| Stile Type | Wide Stile |
| Function Type | Dummy Function |
| Outside Trim | Less Trim |
| Egress Configuration | Exit Only |
| Door Width Range | 42.5 in to 48 in |
| Latching | Single Point Rim Latching |
| Dogging Type | Hex Key Dogging |
| Dogging Indicator | "18" Passive Dogging Indicator |
| Handing | Field Reversible |
| Performance Grade | Grade 1 |
| ANSI/BHMA Standard | A156.3 |
| Finish Code | 630 |
| Finish Description | Satin Stainless Steel |
