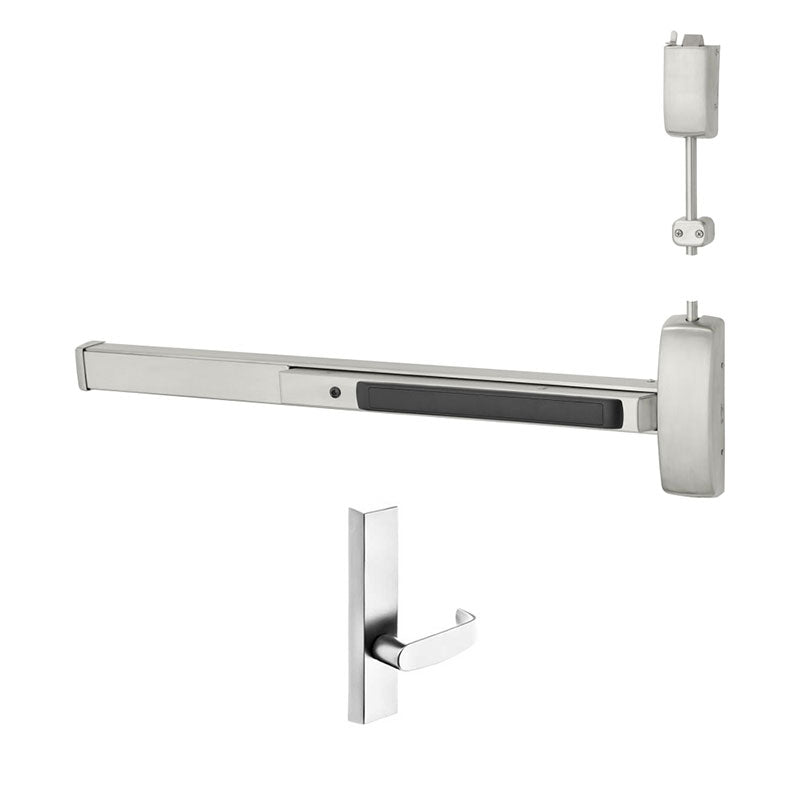

Sargent 12-NB-8715-G-ETL-84 is a 43"-48" Fire Rated Surface Vertical Rod Exit Device features a Less Bottom Rod with an ETL Passage Function Trim that Is Fire Rated. The 12-NB-8715-G-ETL-84 has an 84" high single-point top latching and comes In US32D/630 And US10B/613 Finishes.
| Manufacturer | Sargent |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| UL Listing Type | UL10C & UL305 |
| ANSI Number | ANSI/BHMA A156.3 |
| Restrictions | None |
| BAA Qualified | Yes |
| Limited Warranty | 5 Years |
| Fire Rated | 3 Hours {A} |
| Burglar Rated | No |
| ADA Compliance | No |
| Physical Appearance | Wide Stile Pushpad |
| Device Type | Surface Vertical Rod |
| Mechanical Function | Lever Passage |
| Device Length | 48" |
| Hand | Optional |
| Mechanical Options | Less Bottom Rod |
| Top Strike | 646 |
| Includes Trim | No |
| Minimum Stile Size | 4-1/2" with Trim |
| Door Material | Metal or Wood |
| Door Width | 43" - 48" |
| Door Height | 84 In. |
| Door Thickness | 1-3/4" to 2-1/4" |
| Fire Rated | Yes |
| Product Type | Surface Vertical Rod Exit Devices |
