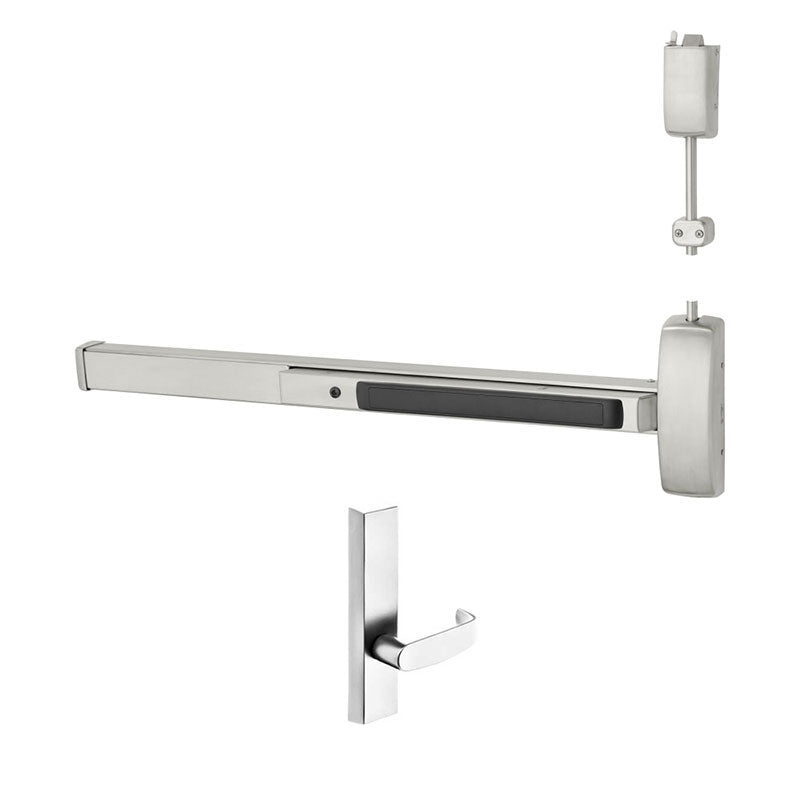

Sargent 12-NB-8715-F-ETL-96 is a 33"-36" Fire Rated Surface Vertical Rod Exit Device features a Less Bottom Rod with an ETL Passage Function Trim that Is Fire Rated. The 12-NB-8715-F-ETL-96 has an 96" high single-point top latching and comes In US32D/630 And US10B/613 Finishes.
Manufacturer | Sargent |
Grade | Grade 1 |
Installation | Commercial |
Origin | USA |
Unit of Measure | Each |
UL Listing Type | UL10C & UL305 |
ANSI Number | ANSI/BHMA A156.3 |
Restrictions | None |
BAA Qualified | Yes |
Limited Warranty | 5 Years |
Fire Rated | 3 Hours {A} |
Burglar Rated | No |
ADA Compliance | No |
Physical Appearance | Wide Stile Pushpad |
Device Type | Surface Vertical Rod |
Mechanical Function | Lever Passage |
Device Length | 36" |
Hand | Optional |
Mechanical Options | Less Bottom Rod |
Top Strike | 646 |
Includes Trim | No |
Minimum Stile Size | 4 1/2" with Trim |
Door Material | Metal or Wood |
Door Width | 33" - 36" |
Door Height | 96 In. |
Door Thickness | 1 3/4" to 2 1/4" |
Fire Rated | Yes |
Product Type | Surface Vertical Rod Exit Devices |
