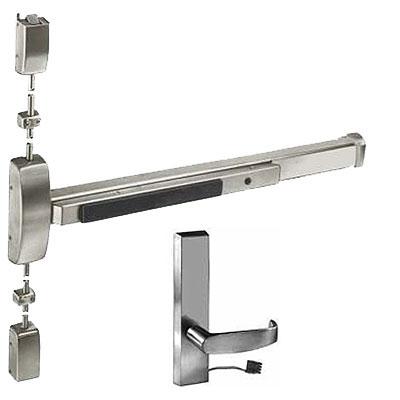

Sargent 12-8774-G-ETL-96-24V is a Surface Vertical Rod Fire Rated Exit Device that has 24V Electrified ETL Lever trim, is Fail Secure - Power Off Locks Lever, (No cylinder). The 12-8774-G-ETL-96-24V has a 96" Rod height, and a 43"-48" rail length and comes in US32D Satin Stainless Steel And US10B Oxidized Dull Bronze Finishes.

74 Electrified ET Trim - Fail Secure
Power Off, Locks Lever (No Cylinder)

8700 Series Surface Vertical Rod Exit Devices
Has two-point latching and is adjustable through the center case.
Part of Sargent's full line of exit devices that provide the best combination of simplicity, strength, durability, aesthetics, and innovation. The top and bottom latch bolt projections are adjustable through the center case.

Door Types:

Wood or metal 1 3/4"(44mm) Thick Door; Over 1 3/4" to 2 1/4" specify thickness and order as a 31- prefix. 4 1/2" (114mm) minimum stile with trim and 3 1/2" (44mm) minimum stile without trim

Door Widths:

E Rail - 24" to 32" (61cm to 81cm) No cutting required for 32" door; F Rail - 33" to 36" (84cm to 91cm) No cutting required for 36" door; J Rail - 37" to 42" (94cm to 107cm) No cutting required for 42" door; G Rail - 43" to 48" (110cm to 122cm) No cutting required for 48" door
