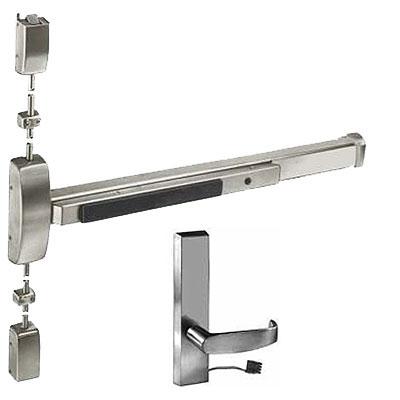

Sargent 12-8773-F-ETL-84-24V Fire Rated Surface Vertical Rod Exit Device, Fail Safe, ETL Trim, 24V, 84" Dr Height, 33"-36" Dr Widths

  • SKU: 128773FETL8424VUS32DLHR

Sargent 12-8773-F-ETL-84-24V Fire Rated Surface Vertical Rod Exit Device, Fail Safe, ETL Trim, 24V, 84" Dr Height, 33"-36" Dr Widths

  • SKU: 128773FETL8424VUS32DLHR
Sale priceDhs. 8,824.00/ea
Available (1‑2 Weeks)
1-2 Weeks Lead Time
Finish: US32D Satin Stainless Steel (630)
Handing: LHR - Left Hand Reverse

The 12-8773-F-ETL-84-24V is a 33"-36" Fire Rated Surface Vertical Rod Panic Device and comes with ETL Panic Trim Electrified Fail-Safe. This panic is for an 84" door height, is 24 volts electrified, and is available in two finishes. US10B/613 Oil rubbed bronze finish and US32D/630 Stainless Steel Finish. The 73 Function is ETL Trim Fail-Safe, Power off, Unlocks Lever, and No Cylinder.


73 Electrified ET Trim - Fail Safe
Power Off, Unlocks Lever (No Cylinder)

8700 Series Surface Vertical Rod Exit Devices
Has two-point latching and is adjustable through the center case.
Part of Sargent's full line of exit devices that provide the best combination of simplicity, strength, durability, aesthetics, and innovation. The top and bottom latch bolt projections are adjustable through the center case.

Door Types: Wood or metal 1-3/4"(44mm) Thick Door; Over 1-3/4" to 2-1/4" specify thickness and order as a 31- prefix. 4-1/2" (114mm) minimum stile with trim and 3-1/2" (44mm) minimum stile without trim
Door Widths:E Rail - 24" to 32" (61cm to 81cm) No cutting required for 32" door; F Rail - 33" to 36" (84cm to 91cm) No cutting required for 36" door; J Rail - 37" to 42" (94cm to 107cm) No cutting required for 42" door; G Rail - 43" to 48" (110cm to 122cm) No cutting required for 48" door

Manufacturer Sargent
Grade Grade 1
Installation Commercial
Origin USA
Unit of Measure Each
UL Listing Type UL10C & UL305
ANSI Number ANSI/BHMA A156.3
Restrictions None
BAA Qualified Yes
Limited Warranty 5 Years
Fire Rated 3 Hours {A}
Burglar Rated No
ADA Compliance No



Physical Appearance Wide Stile Pushpad
Device Type Surface Vertical Rod
Mechanical Function Device to Accept Electrified Trim
Device Length 36"
Hand Left Hand Reverse or Right Hand Reverse
Dogging Options Less Dogging
Top Strike 646
Strike Bottom 655
Includes Trim Yes
Trim Type ETL
Includes Cylinder(s) No
Cylinder Type Non-Keyed
Minimum Stile Size 3-1/2"
Door Material Metal or Wood
Door Width 33" to 36"
Door Height 84"
Door Thickness 1-3/4" - 2-1/4"
Fire Rated Yes
Reversible No
Product Type Surface Vertical Rod Exit Devices
