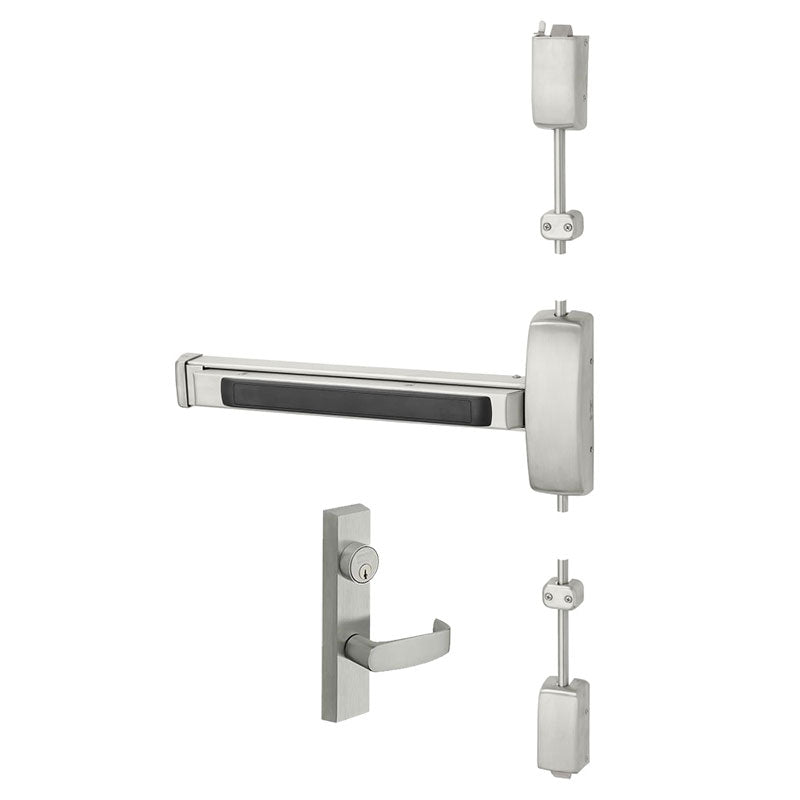

The Sargent 12-8713-E-ETL-96 is a 32" Fire Rated Surface Vertical Rod Exit Device for use with 24" - 32" Wide Doors and 96" Door Heights. The Sargent 12-8713-E-ETL-96 is Less Dogging and comes with an ETL Trim where the Key Locks or Unlocks the Outside Lever.
Sargent 13 Function
Key Outside Unlocks/locks Trim (#41 Cylinder Supplied)
Has two point latching and is adjustable through the center case.
Part of Sargent's full line of exit devices that provide the best combination of simplicty, strength, durability, aesthetics, and innovation. The top and bottom latchbolt projection is adjustable through the center case.
| Manufacturer | Sargent |
| SKU | 12-8713E ETL 96 |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| UL Listing Type | UL10C & UL305 |
| ANSI Number | ANSI/BHMA A156.3 |
| Restrictions | None |
| BAA Qualified | Yes |
| Limited Warranty | 5 Years |
| Fire Rated | 3 Hours {A} |
| Burglar Rated | No |
| ADA Compliance | Yes |
| Physical Appearance | Wide Stile Pushpad |
| Device Type | Surface Vertical Rod |
| Mechanical Function | Classroom |
| Device Length | 32" |
| Hand | LHR or RHR |
| Dogging Options | Less Dogging |
| Top Strike | 646 |
| Strike Bottom | 655 |
| Includes Trim | Yes |
| Trim Type | Lever |
| Trim Design | Lever with Escutcheon |
| Trim Part No. | 713-8 ETL |
| Minimum Stile Size | 4 1/2" |
| Door Material | Metal or Wood |
| Door Width | 24" to 32" |
| Door Height | 96" |
| Door Thickness | 1 3/4" - 2 1/4" |
| Fire Rated | Yes |
| Reversible | No |
| Product Type | Surface Vertical Rod Exit Devices |
