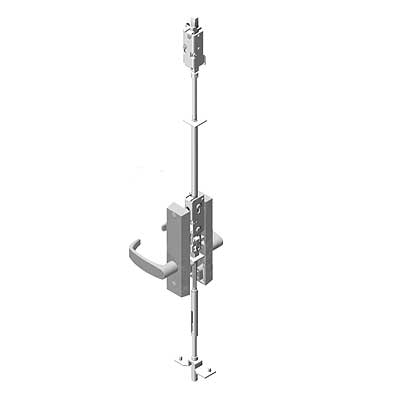

The Sargent 12-707415-ETL-26D-84-RHR-KD is a Fire Rated Vertical Rod Multipoint lock, which features an electrified fail secure outside function and inside passage (No Cylinder) function. It comes in LA Keyway, Keyed Random with 2 Keys, and has ET Trim and an L Lever, in a Right Hand Reverse in US26D Satin Chrome Finish.
- Designed for metal door applications with 2-1/4" Backset
- Concealed rods offer additional security
- Less bottom rod option available, specified as NB-7000 and 12-NB-7000 (For single door applications, consult factory)
- NB- provides free access for wheel chairs and carts
- Single or double door applications
- UL Fire Listed: 12-7000 / 12-NB-7000 (12-NB- is for double door applications only)
- UL Certified to ZHEM.R
For Doors |
Metal doors, 1-3/4" (44mm) door thickness standard, |
Mounting |
Supplied fasteners are for metal doors with through-bolts for trim |
Handing |
RHR - Right Hand Reverse |
Top and Bottom Bolts |
Stainless steel. Top and bottom bolt travels 7/16" (11mm) Projection adjustable up to 1" (25mm) |
Trim |
ET Trim with L Lever |
Function: |
Outside Function: Electrified Fail Secure (74) |
