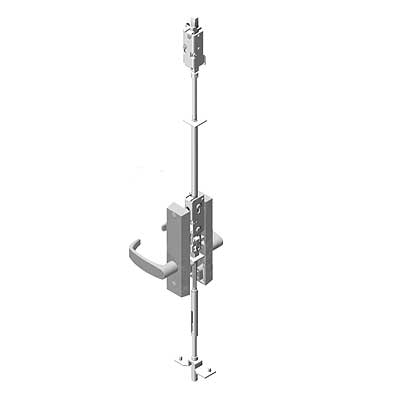

The Sargent 12-701313-ETL-26D-84-RHR-KD is a Fire Rated Vertical Rod Multipoint lock, which comes in Classroom function where Key Outside Unlocks/locks Trim. It comes in LA Keyway, Keyed Random with 2 Keys, and has ET Trim and an L Lever, in a Right Hand Reverse in US26D Satin Chrome Finish.
Designed for metal door applications with 2-1/4" Backset
Concealed rods offer additional security
Less bottom rod option available, specified as NB-7000 and 12-NB-7000 (For single door applications, consult factory)
NB- provides free access for wheel chairs and carts
Single or double door applications
UL Fire Listed: 12-7000 / 12-NB-7000 (12-NB- is for double door applications only)
UL Certified to ZHEM.R
Product Specs
For Doors
Metal doors, 1-3/4" (44mm) door thickness standard, 4-1/2" minimum stile, 2-1/4" backset standard
Mounting
Supplied fasteners are for metal doors with through-bolts for trim
Handing
RHR - Right Hand Reverse
Top and Bottom Bolts
Stainless steel. Top and bottom bolt travels 7/16" (11mm) Projection adjustable up to 1" (25mm)
