Sargent 12-700615-ETL-26D-84-LHR-KD Vertical Rod Multi Point Lock, Fire Rated, Outside Function - Key unlocks Trim, Inside Function - Passage, LHR, Satin Chrome

  • SKU: 12700615ETL26D84LHRKD
Sargent 12-700615-ETL-26D-84-LHR-KD
All SARGENT Products

Sargent 12-700615-ETL-26D-84-LHR-KD Vertical Rod Multi Point Lock, Fire Rated, Outside Function - Key unlocks Trim, Inside Function - Passage, LHR, Satin Chrome

  • SKU: 12700615ETL26D84LHRKD
  • ✓
    Available (1 Week)
    1 Week Lead Time
Your Price
Dhs. 7,733.00/ea

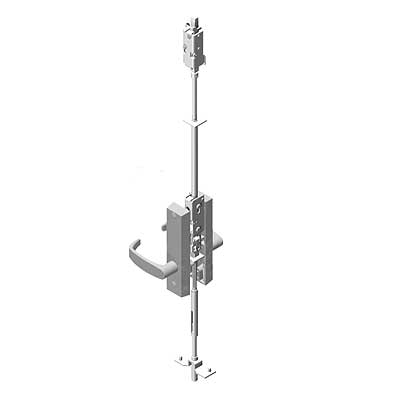

The Sargent 12-700615-ETL-26D-84-LHR-KD is a Fire Rated Vertical Rod Multipoint lock, that features a 'Key unlocks Trim, Trim retracts latch, Trim relocks when key is removed' outside function and inside Passage function. It comes in LA Keyway, Keyed Random with 2 Keys, and has ET Trim and an L Lever, in a Left Hand Reverse in US26D Satin Chrome Finish.

Sargent 7000 Series Vertical Rod Locks

  • Designed for metal door applications with 2-1/4" Backset
  •  Concealed rods offer additional security
  • Less bottom rod option available, specified as NB-7000 and 12-NB-7000 (For single door applications, consult factory)
  • NB- provides free access for wheel chairs and carts
  • Single or double door applications
  • UL Fire Listed: 12-7000 / 12-NB-7000 (12-NB- is for double door applications only)
  • UL Certified to ZHEM.R

For Doors

Metal doors, 1-3/4" (44mm) door thickness standard,
4-1/2" minimum stile, 2-1/4" backset standard

Mounting

Supplied fasteners are for metal doors with through-bolts for trim

Handing

LHR - Left Hand Reverse

Top and Bottom Bolts

Stainless steel. Top and bottom bolt travels 7/16" (11mm) Projection adjustable up to 1" (25mm)

Trim

ET Trim with L Lever
Fire Rated: Yes

Function:

Outside: Key unlocks Trim, Trim retracts latch, Trim relocks when key is removed (06)
Inside: Passage (15)

    Product Cut Sheet
