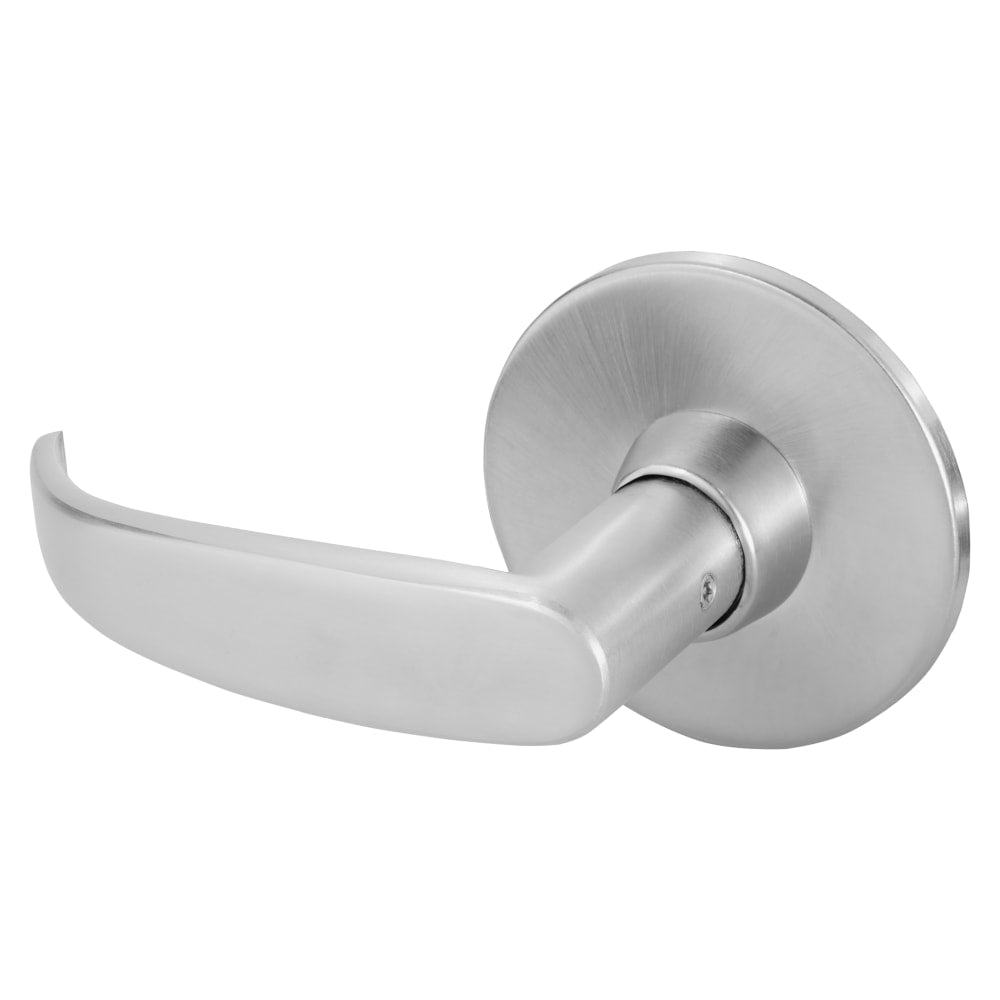

The Sargent 11U94-2-LP is a Grade 1 Heavy Duty, Cylindrical Double Dummy Trim Function and comes with an L Rose and L Lever Design. The Dummy Trim Function is used for doors that don't require an active locking mechanism but still may need to maintain a consistent appearance with other doors in the same area. The 11U94-2 features a dummy latch plate and requires a standard door prep. Sargent's 11 Line Commercial Lever Door Locks Are Ideal For Institutions and Areas That Require A Quality Made Commercial Door Lockset.
11-Line T-Zone Bored Lever Locks
The SARGENT 11 Line sets a higher standard for Grade 1 bored-in locks.
The unique T-Zone® construction provides unequaled strength and durability for the most demanding applications such as schools and hospitals.
18 functions available, including Classroom Security; many functions are field changeable requiring no additional parts
Integrates into most existing facility’s key systems – accepts SARGENT key systems including patented Degree® and Signature; also accepts Best® SFIC and Schlage® and Medeco® LFIC
Retrofits any standard cylindrical lock door prep and is non-handed
Simple cylinder removal provides easy change-outs
Made from 68% post-consumer recycled content as per LEED MR credit 4
Available in 13 architectural-grade finishes and Microshield® antimicrobial coating
10 year limited warranty
Manufacturer |
Sargent |
SKU |
11U94-2 LP |
Grade |
Grade 1 |
Installation |
Commercial |
Origin |
United States |
Unit of Measure |
Each |
Base Material |
Brass, Bronze |
UL Listing Type |
ANSI A156.2, Series 4000, Grade 1, UL Listed |
BAA Qualified |
Yes |
Limited Warranty |
10 Year |
Fire Rated |
3 Hours {A} |
Burglar Rated |
No |
Function |
94-2 Double Lever Pull w/ Dummy Latch Plate Lock |
Function Family |
Dummy |
Lever/Knob Design |
P Lever |
Lever/Knob Design Family |
Curved Lever |
Rose/Escutcheon Design |
L Rose |
Rose/Escutcheon Dimensions |
3-1/2" |
Cylinder Type |
Non-Keyed |
Handing |
Non-handed |
Door Thickness |
1 3/4" to 2" |
Screws |
Wood/Machine Screws |
Product Type |
Cylindrical Lock |
