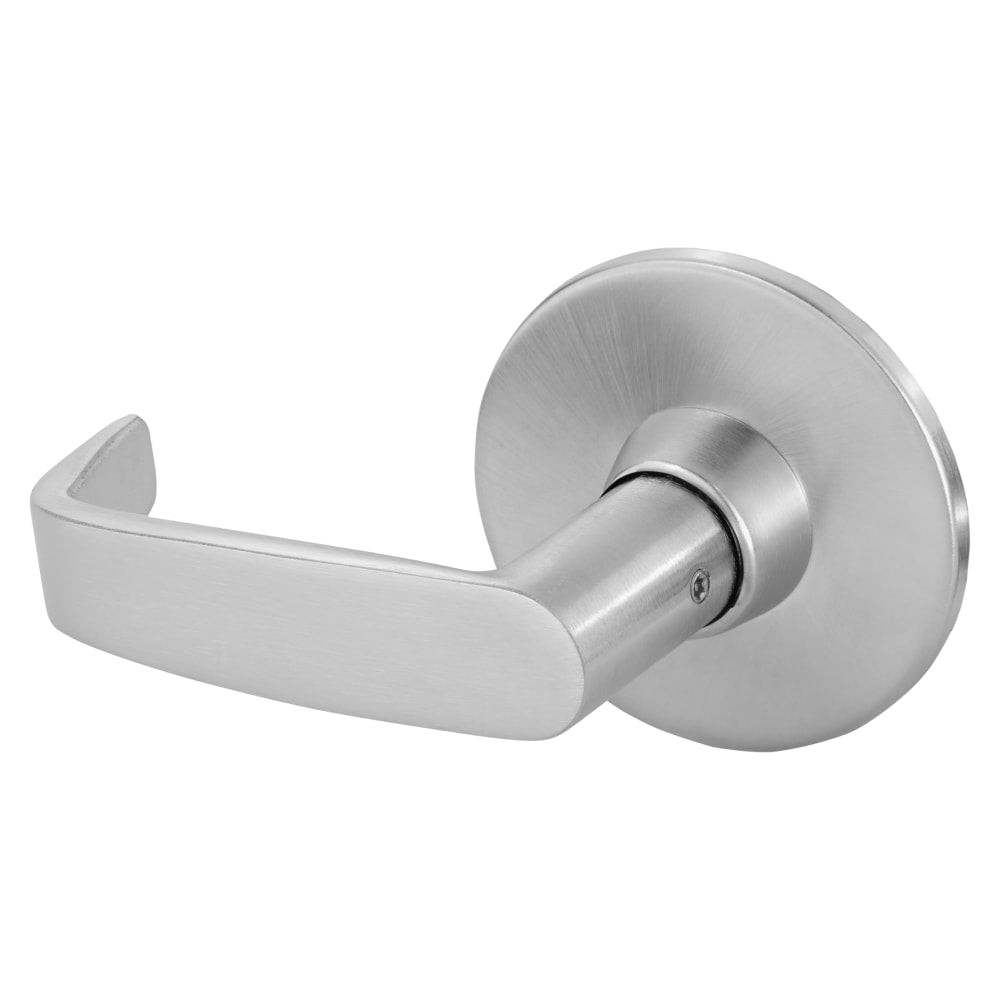

Sargent 11U94-2-LL Double Dummy Lever Pulls, Mounted Back to Back With Dummy Latch Plate, L Rose, L lever, Grade 1

  • SKU: 11U942LLUS26D

Sargent 11U94-2-LL Double Dummy Lever Pulls, Mounted Back to Back With Dummy Latch Plate, L Rose, L lever, Grade 1

  • SKU: 11U942LLUS26D
Sale priceDhs. 1,475.00/ea
Available (3‑4 Weeks)
3-4 Weeks Lead Time
Finish: US26D Satin Chrome (626)

The Sargent 11U94-2-LL is a Grade 1 Heavy Duty, Cylindrical Double Dummy Trim Function and comes with an L Rose and L Lever Design. The Dummy Trim Function is used for doors that don't require an active locking mechanism but still may need to maintain a consistent appearance with other doors in the same area. The 10U94-2 features a dummy latch plate and requires a standard door prep. Sargent's 11 Line Commercial Lever Door Locks Are Ideal For Institutions and Areas That Require A Quality Made Commercial Door Lockset.

11-Line T-Zone Bored Lever Locks

The SARGENT 11 Line sets a higher standard for Grade 1 bored-in locks.

The unique T-Zone® construction provides unequaled strength and durability for the most demanding applications such as schools and hospitals.

  • 18 functions available, including Classroom Security; many functions are field changeable requiring no additional parts
  • Integrates into most existing facility’s key systems – accepts SARGENT key systems including patented Degree® and Signature; also accepts Best® SFIC and Schlage® and Medeco® LFIC
  • Retrofits any standard cylindrical lock door prep and is non-handed
  • Simple cylinder removal provides easy change-outs
  • Made from 68% post-consumer recycled content as per LEED MR credit 4
  • Available in 13 architectural-grade finishes and Microshield® antimicrobial coating
  • 10 year limited warranty
Manufacturer Sargent
SKU 11U94-2 LL
Grade Grade 1
Installation Commercial
Origin United States
Unit of Measure Each
Base Material Brass, Bronze
UL Listing Type ANSI A156.2, Series 4000, Grade 1, UL Listed
BAA Qualified Yes
Limited Warranty 10 Year
Fire Rated 3 Hours {A}
Burglar Rated No



Function 94-2 Double Lever Pull w/ Dummy Latch Plate Lock
Function Family Dummy
Lever/Knob Design L Lever
Lever/Knob Design Family Straight Return Lever
Rose/Escutcheon Design L Rose
Rose/Escutcheon Dimensions 3-1/2"
Cylinder Type Non-Keyed
Handing Non-handed
Door Thickness 1 3/4" to 2"
Screws Wood/Machine Screws
Product Type Cylindrical Lock
