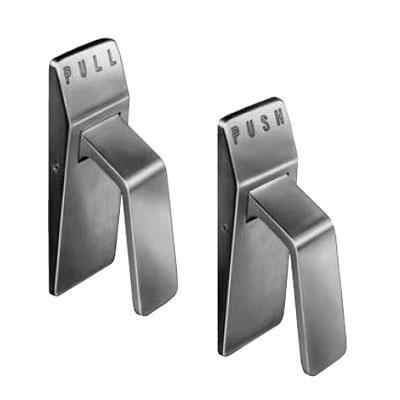

Sargent 114P-US26D Hospital Latches for Push-Pull Doors, 5" Backset, With Push/Pull Trim, Satin Chrome Finish
Push/Pull Stamp, Both Paddles are pointed downwards. Available in 2 3/4" or (28) 4 7/8" Strike.
Designed for convenience and utility, the 114 hospital latches open with a gentle pull or slight push, making them ideal for hands-free operation.
Both the 114 push-pull and 115 push-pull latches with their low profile helps eliminate any obstruction while passing through an opening. Slim tapered
paddles and smartly styled escutcheons possess all the elements of tasteful, yet functional design. The chassis design makes this hospital latch constructed for both durability and ease of installation. The 114 Hospital latches are available with 2 3/4" or 4 7/8" strikes, as well as 2 3/4" or 5" backsets, These latches are handed.
Specifications
| For Doors: |
1-3/4" (44mm) to 2-1/4" (57mm) |
| Backset: |
5" (127mm) standard |
| Strike: |
2-3/4" (70mm) ANSI A115.2 curved lip strike #800
OR
28- 4-7/8" (124mm) ANSI curved lip strike # 808
|
| Bolt: |
Brass, 1/2" (13mm) throw |
| Hand: |
Specify hand (RHR, RH, LHR or LH) |
| 114: |
Push/Pull Paddles - both mounted down position only. Cast; Projection from door 3-1/4" (83mm) |
| Escutcheons: |
Cold drawn; 2-1/2" (64mm) x 6-7/8" (175mm) |
| UL Listed: |
UL Listed for use on fire doors. See Underwriters Laboratories Building Materials List |
