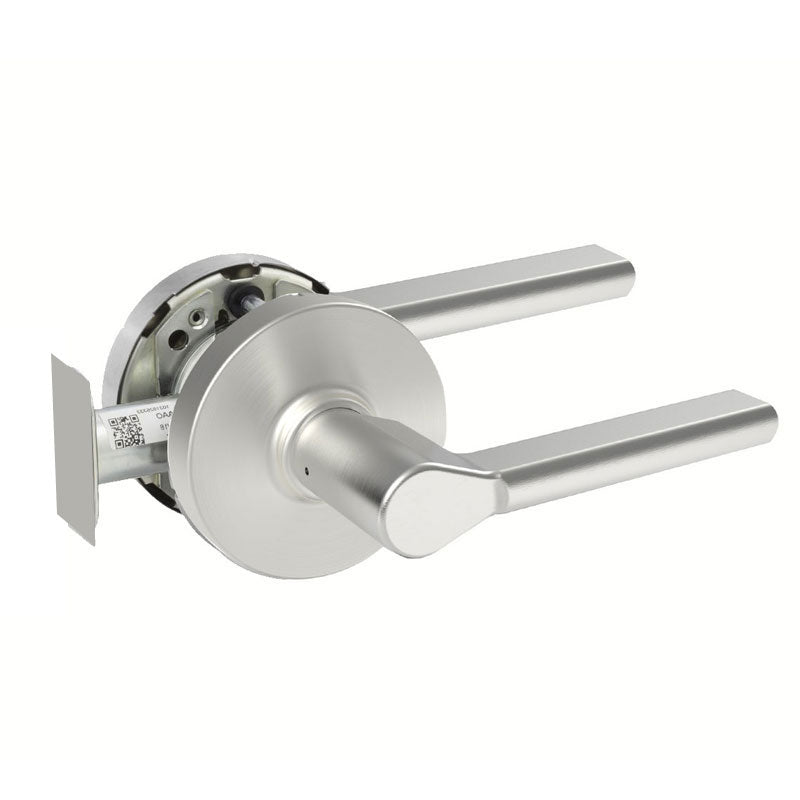

Sargent 10XU94-2-LMD Double Dummy Trim Lever Pulls, Mounted Back to Back With Dummy Latch Plate, L Rose, MD Lever, Grade 1

  • SKU: 10XU942LMDUS26D

Sargent 10XU94-2-LMD Double Dummy Trim Lever Pulls, Mounted Back to Back With Dummy Latch Plate, L Rose, MD Lever, Grade 1

  • SKU: 10XU942LMDUS26D
Sale priceDhs. 1,259.00/ea
Available (2‑3 Weeks)
2-3 Weeks Lead Time
Finish: US26D Satin Chrome (626)

Sargent 10XU94-2-LMD Double Dummy Lever Pulls, Mounted Back to Back With Dummy Latch Plate, L Rose, MD Lever, Grade 1

The Sargent 10XU94-2-LMD is part of Sargent's Grade 1 10 Line Locks. The 10XU94-2 Double Lever Pull comes in a L Rose and MD Lever Design. The Dummy 94-2 Trim Function is best used for applications that don't require an active locking or latching mechanism. Sargent 10XU94-2-LMD is ideal For Use In Institutions, schools, Office Spaces, Healthcare Facilities, and Areas That Require A Grade 1 cylindrical lock. The Sargent 10XU94-2-LMD is available in US26D Satin Chrome, US26 Polished Chrome, US10 Satin Bronze, US4 Satin Brass, US3 Polished Brass, and BSP Black Suede Powder Coat Finish.



Sargent 10XU94-2 Function

10X-Line Bored Lever Locks

The SARGENT 10X Line bored lock is engineered to secure and protect high-traffic, high-abuse spaces. It doesn't simply meet ANSI/BHMA Grade 1 performance standards for durability, strength and performance, it exceeds them - by as much as 20 times. That means occupants will experience reliable performance throughout its lifecycle.

Features

  • Compatible with several security key systems (Degree, Signature, KESO, etc.)
  • Prevents entry and maintains egress against more than 3,100 in-lb locked lever torque (2.6x ANSI/BHMA A156.2 requirements)
  • Withstands 1,600 lbs offset lever pull (8x ANSI/BHMA A156.2 requirements) and continues to restrict entry
  • Ensures latch retraction with 100lb preload (2x ANSI/BHMA A156.2) while maintaining operation in warped doors or doors with latch bind
  • Prohibits entry after more than 100 vertical impacts (20x ANSI/BHMA A156.2 requirements)
  • Innovative push/turn button design prevents damage from door stops and walls
  • 26 mechanical functions offered
  • Available in 14 finishes with multiple lever designs
  • Optional Microshield ® antimicrobial coating available
  • Lockbody design supports all cylinder formats - from fixed to interchangeable core
  • Provides maximum resistance to vandalism and other malicious attacks
  • Certified above & beyond testing to withstand high volume traffic
  • Complements the look of any design style
  • Minimizes inventory stocking requirements
  • Simplifies installation in new and retrofit applications
  • Integrates with new or existing facility key systems



Manufacturer Sargent
SKU 10XU94-2 LMD
Grade Grade 1
Installation Commercial
Origin United States
Unit of Measure Each
Base Material Brass, Bronze
UL Listing Type ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
Limited Warranty 10 Year Limited Warranty
Fire Rated 3 Hours {A}
Burglar Rated No


Function 94-2 Double Lever Pull
Function Family Dummy
Lever/Knob Design MD Lever
Rose/Escutcheon Design L Rose
Rose/Escutcheon Dimensions 3-1/2"
Cylinder Type Non-Keyed
Handing Non-handed
Door Thickness 1-3/4" to 2"
Std. Strike Number 808
Std. Strike Type ANSI Curved Lip Strike
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Wood/Machine Screws
Product Type Cylindrical Lock
