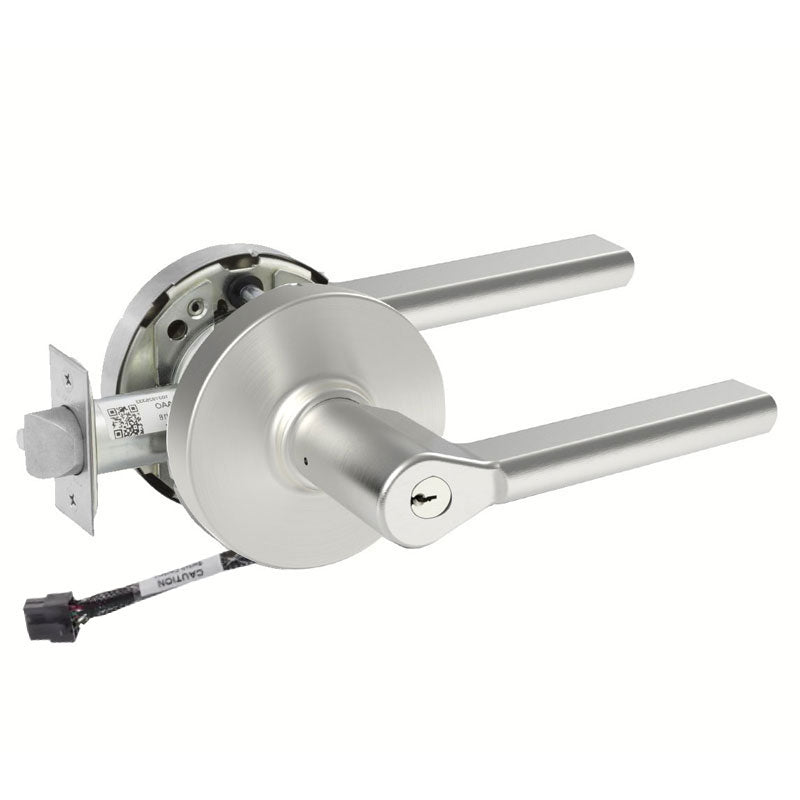

The Sargent 10XG71-LMD Cylindrical Electromechanical Lock features a Fail Secure - Power Off Locks Lever Function, where the power off Locks the outside lever. The 10XG71-LMD comes with a standard LA Keyway Cylinder, Keyed Randomly, 2 change keys per lock, an L Rose,MD Lever, 2-3/4" backset, 4-7/8" strike, and comes in 12VDC or 24VDC voltage options. Sargent 10XG71-LMD Locks are field-selectable, fail-safe, and fail-secure.
Key Features:
| Manufacturer | Sargent |
| SKU | 10XG71 LMD |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | United States |
| Unit of Measure | Each |
| UL Listing Type | ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed |
| Limited Warranty | 10 Year Limited Warranty |
| Fire Rated | 3 Hours {A} |
| Burglar Rated | No |
| Function | 71 Electromechanical (Fail Secure) |
| Lever/Knob Design | MD Lever |
| Rose/Escutcheon Design | L Rose |
| Cylinder Type | 6-Pin Cylinder |
| Num Pins | 6 |
| Hand | Non-handed |
| Door Thickness | 1-3/4" to 2" |
| Latch Number | Oct-00 |
| Latch Type | Deadlatch |
| Latch Backset Dim | 2-3/4" |
| Lock Face Size | 1-1/8" x 2-1/4" |
| Bolt Projection | 1/2" |
| Strike Number | 808 |
| Strike Type | ANSI Curved Lip Strike |
| Strike Height | 4-7/8" |
| Strike Width | 1-1/4" |
| Screws | Wood/Machine Screws |
| Operating Voltage | 12 or 24 VAC/DC |
| Amp Draw | 250 mA @ 12VAC/VDC or 150mA @ 24VAC/VDC |
| Product Type | Electric Cylindrical Lock |
