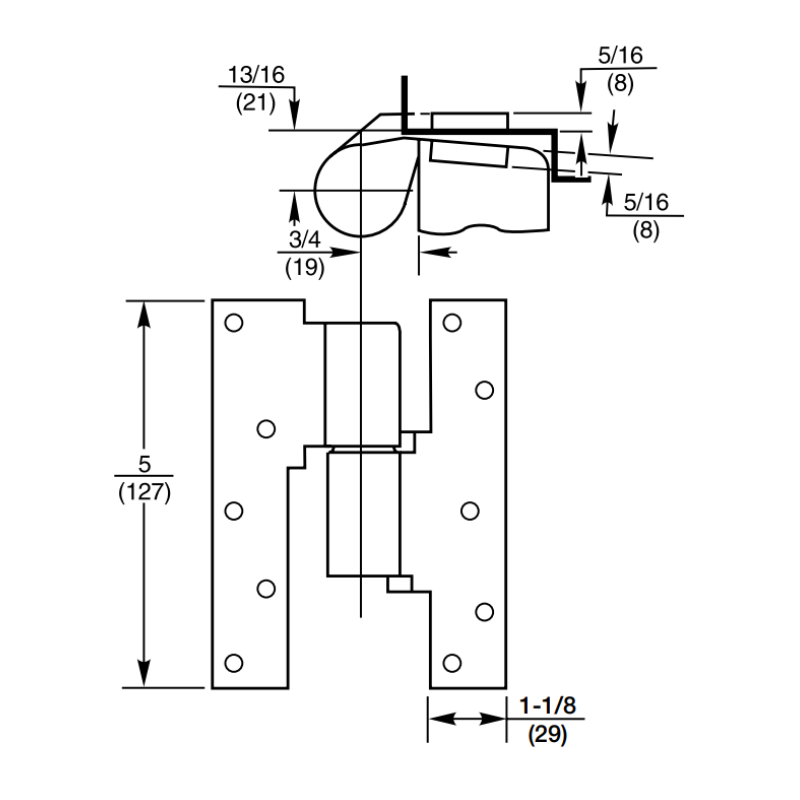

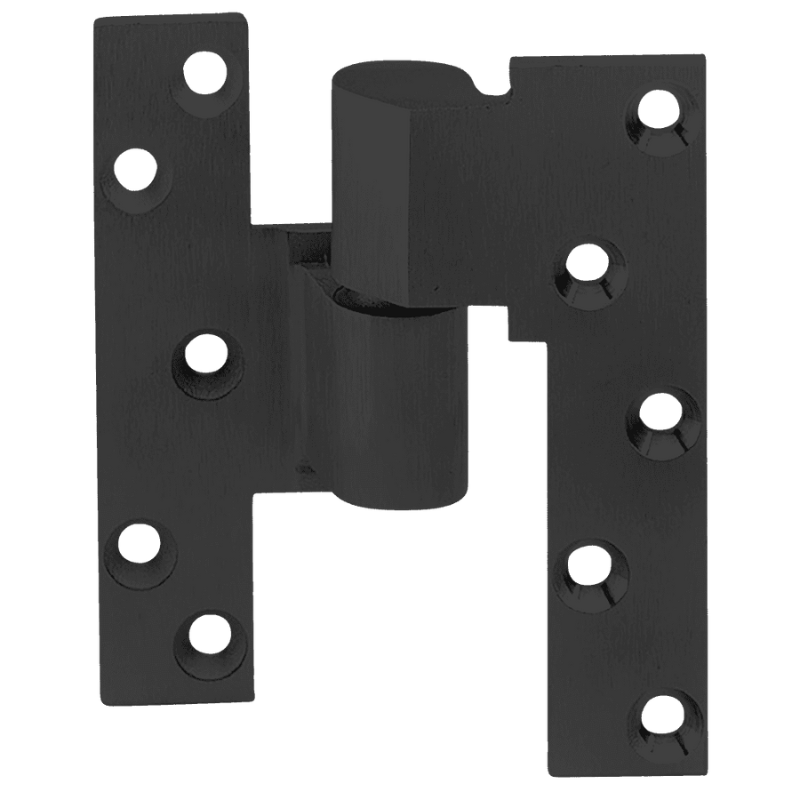

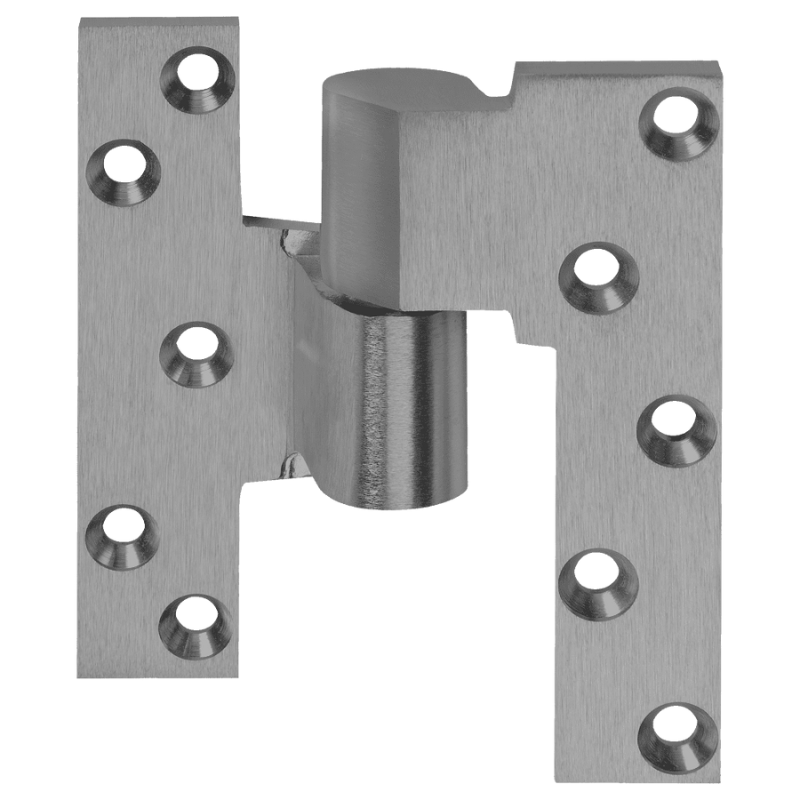

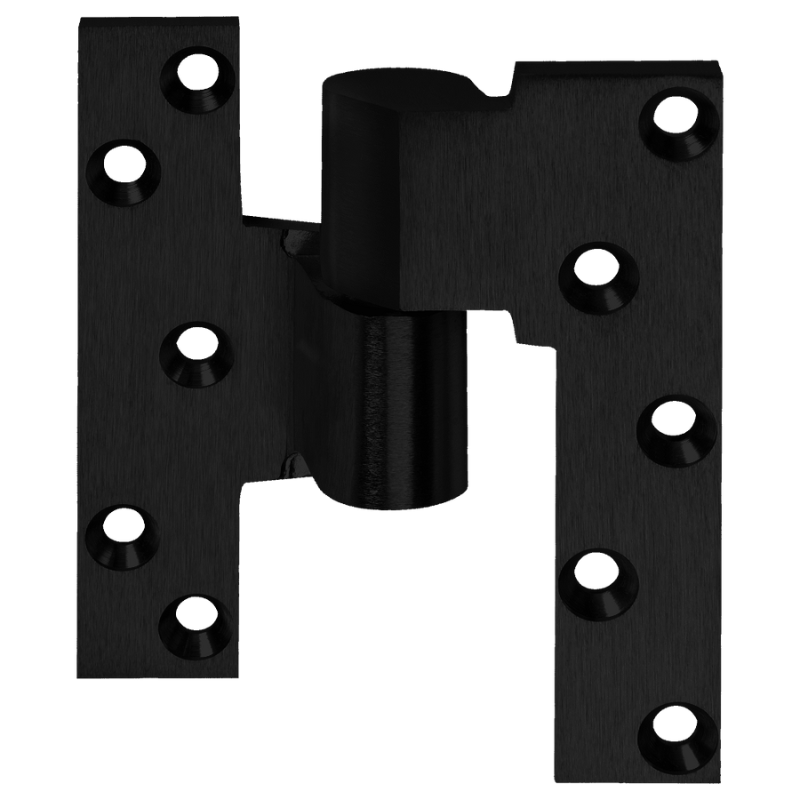

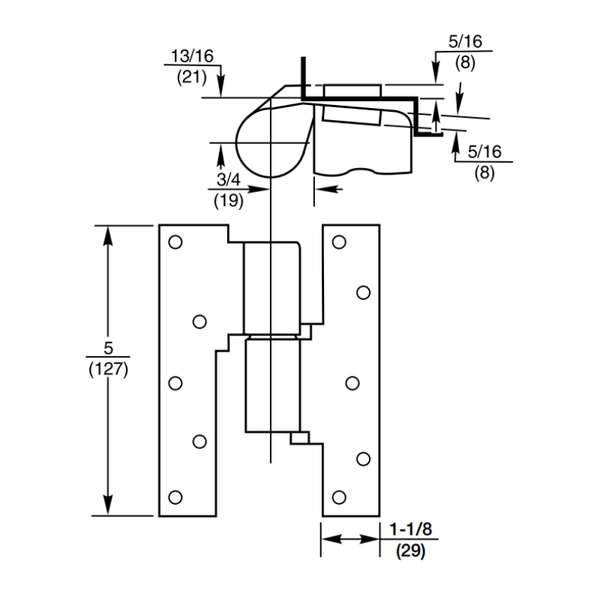

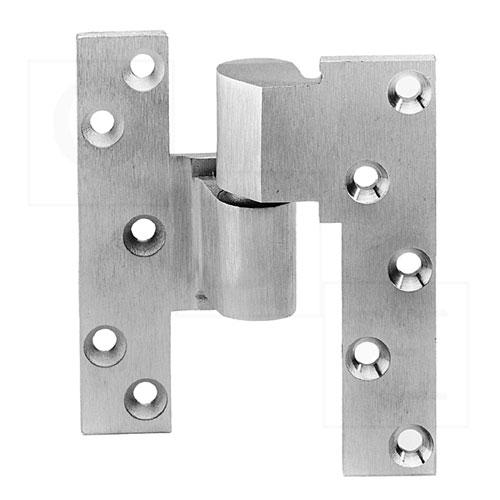

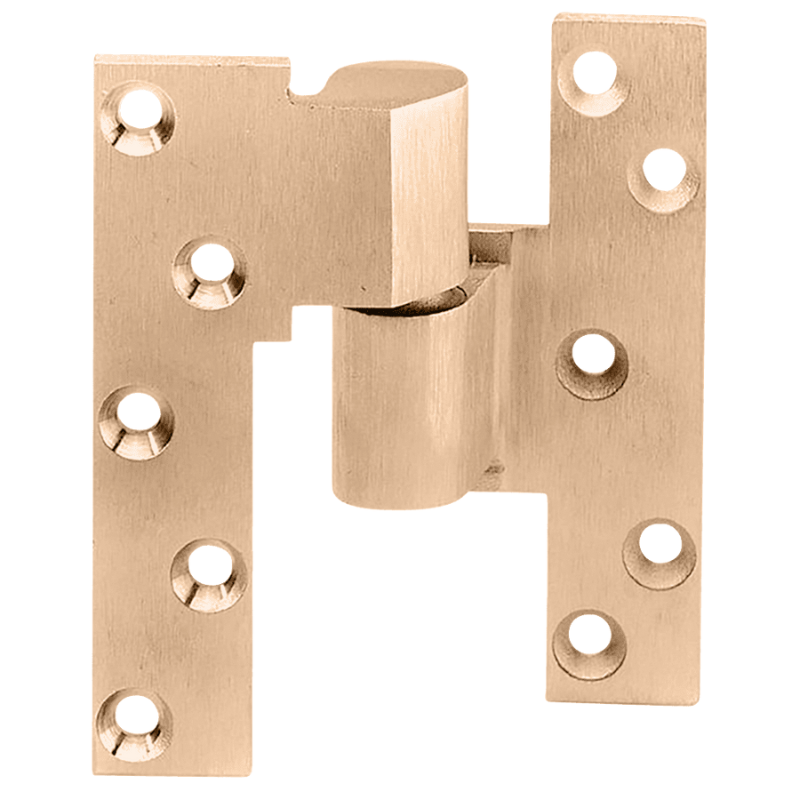

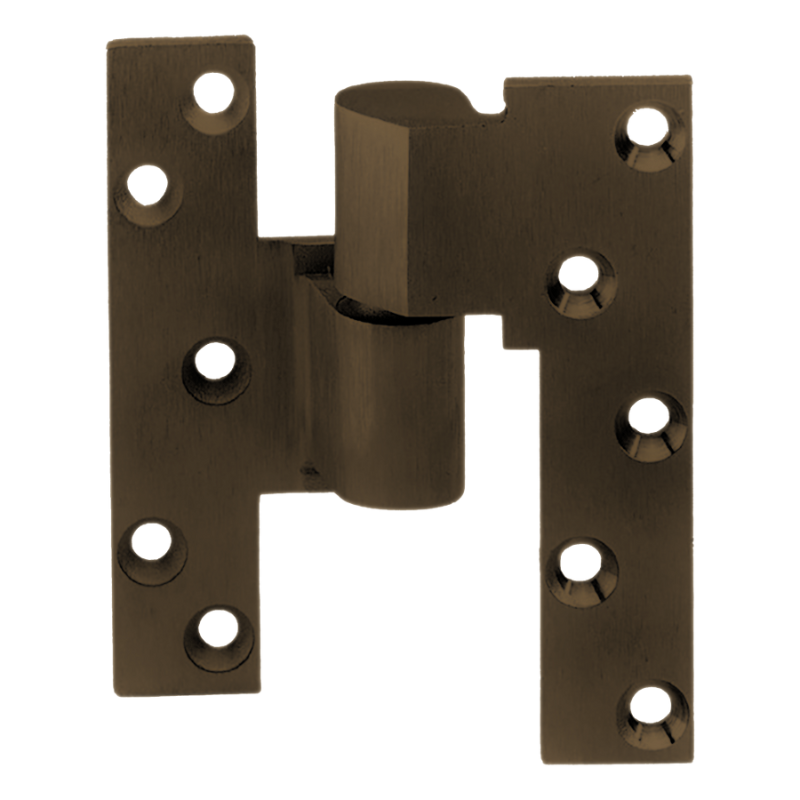

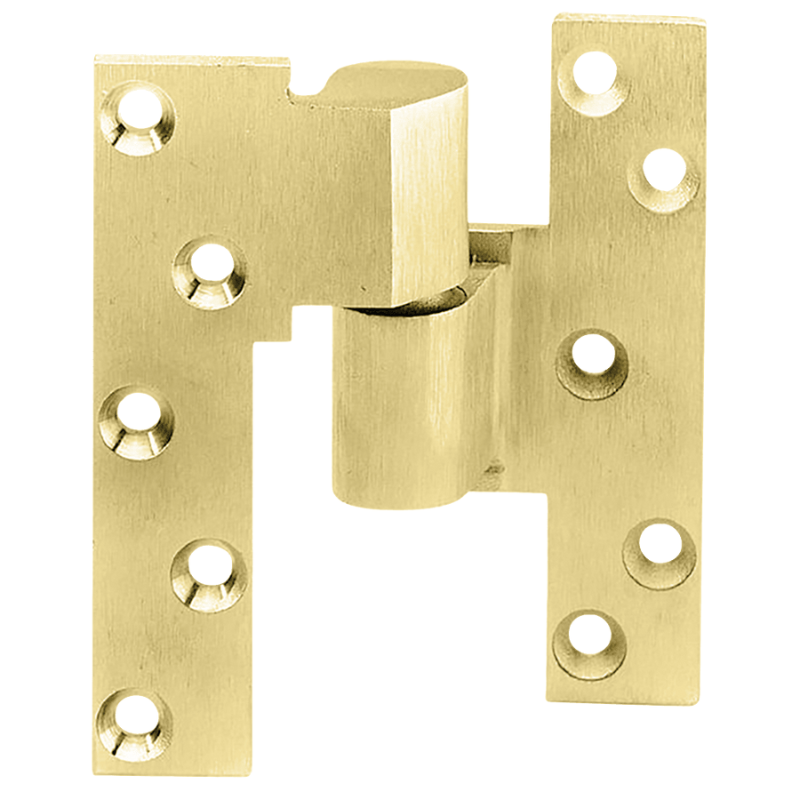

Rixson M19 Intermediate 3/4 inch Offset Pivot, Full Mortise, Handed

Rixson M19 Intermediate pivot with a 3/4 inch offset, designed for full mortise installation and handed application.

• Not load-bearing

• Maintains door alignment

• Aids in installing floor closers and bottom pivots

• 3/4" (19mm) offset

• Door edges must be beveled in 1/8" in 2"

• Non-ferrous base metal

• Doors 60" (1524mm) to 90" (2286mm) in height should use one intermediate pivot. Each additional 30" (762mm) warrants another intermediate pivot

• Furnished with wood and machine screws
