Rixson E-M19 Electrified Intermediate Pivot for Power Transfer - Offset Hung, Handed

  • SKU: EM198RH626

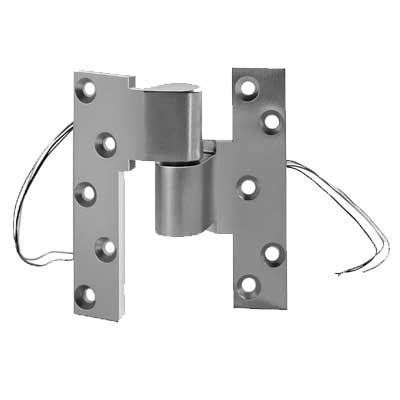

Rixson E-M19 Electrified Intermediate Pivot
Rixson E-M19 Electrified Intermediate Pivot
Rixson E-M19 Tech Info
Rixson E-M19 Electrified Intermediate Pivot for Power Transfer - Offset Hung, Handed
All RIXSON Products

Rixson E-M19 Electrified Intermediate Pivot for Power Transfer - Offset Hung, Handed

  • SKU: EM198RH626
  • ✓
    Available (6‑8 Weeks)
    6-8 Weeks Lead Time
Your Price
Dhs. 2,075.00/ea
Rixson Finish: 626 Satin Chrome (US26D)
Rixson Handing: RH Right Hand

Rixson E-M19 Electrified Intermediate Pivot for Power Transfer - 8 Wire (626-26D), 4 Wire (613-US10B) Offset Hung, Handed.

Application

• Offset Hung
• Electric Pivot for Power Transfer
• Handed
• For Electrified Panic Devices with Large Inrush Current

Description/Features
• Not load-bearing
• Always use M19 intermediate pivot to install door
• Door and jamb portion are factory assembled and cannot be separated
• Junction boxes are supplied with pivots
• Two each 18 gauge wires. Each wire is rated at 2 amps continuously. UL listed for 24-volt, Class I wiring
• ElectroLynx® option not available
• Not available in ferrous material
• 3/4" (19mm) offset
• Door edges must be beveled in 1/8" in 2"
• Furnished with wood and machine screws








Product Cut Sheet
