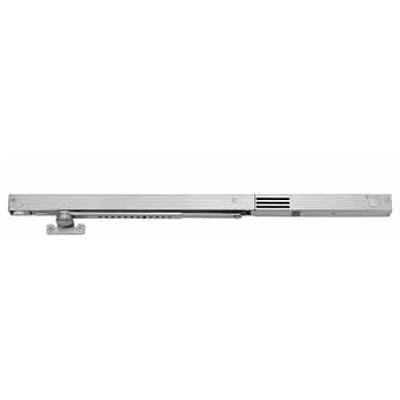

Rixson 99-926 CHECKMATE 99 Series Non-Detectored Electromagnetic Holder - Pull Side Mount
Rixson 99-926 Checkmate 99 Series is a Non-Detectored Electromagnetic Holder that is Pull Side Mounted.
The 99 Checkmate can be detected for a complete stand-alone installation or non-detected as part of an established building alarm system. The Checkmate 99 can be used with any make or model of door closers (except overhead concealed).
Rixson 99-926 Electromagnetic Holder Features
- Surface-mounted
- Single-acting
- Sprayed finishes
- 85 ° - 110 ° hold open
- Pull side
- Detected or non-detectors
- Surface or concealed wiring
- Holding force 25-35 lbs.
- When used in conjunction with the detectors model, the unit must be 24VDC
Rixson 99-926 Electromagnetic Holder Specifications
| Application: |
Used with independent closers |
| Handing: |
Non-handed |
| Maximum Door Width: |
For doors 2'8" to 4'0"
(non-detectored) 3'0" to
4'0" (detectored) |
| Door Holding Force: |
25-35 lbs. |
| Voltage: |
24VAC/DC, 120VAC |
| Manufacturer: |
Rixson |
Rixson 99-926 Electromagnetic Holder Certifications
| ANSI: |
C00471/C00481 |
| UL: |
UL/ULC Listed |
