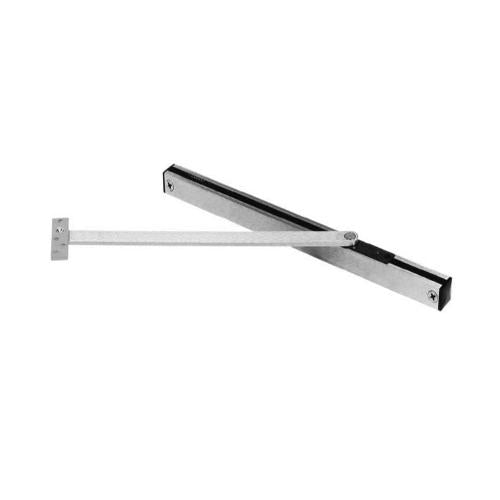

Rixson 9-326-630 OverHead Surface Mounted Heavy Duty Stop With Hold Open, Dr Width Use Butts and Pivots 33-1/16-38 In, For 1 3/4 Tk Dr, 110 Deg Max, Non Handed, US32D-630 Satin Stainless Steel Finish

Rixson Checkmate 9-326 Heavy-Duty Surface Mounted Hold Open

• Doors are single acting
• Non-handed
• Slide track design
• Recommended for high traffic, heavy abuse installations
• Heavy shock absorber spring provides 5-7 ° compression before the dead stop
• LS option omits spring for special application
• On/off knob
• Complete screw packet with thru-bolts for the door, wood, and machine screws for frame
• Torx ® screws optional for security applications
• Standard architectural finishes
• 110 ° maximum opening
• 1-3/4" minimum door thickness
• 1-3/16" square channel
• Durable slider cam and shock block
• For flush mounting on the push side of the door use angle jamb bracket adapter 5458 LH 5459RH
• Rixson 9-326 Overhead Door Stops
