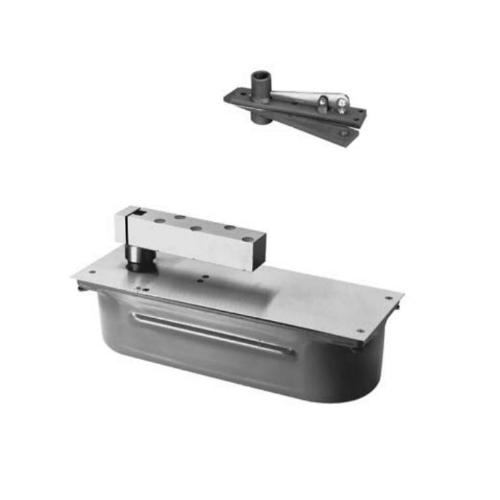

Rixson 30 LAP (Less All Parts) Double-Acting, Non-Handed, Center Hung Floor Closer Body Only - Weight Up To 200 lbs.

Features Rixson 30 LAP (Less All Parts) Double-Acting Center Hung Floor Closer Body Only

• Centering arm with adjustment screws in faces of the door (critical for double acting doors)
• Adjustable closing speed valves for each direction of the door swing
• Mechanism returns the door to the center
• Available non-hold open (N) or automatic hold open (A) at 90 ° (requires 93 ° swing) or 100 ° (requires 103 ° swing)
• Not available in Delayed Action (DA)
• Maximum door opening 103 °
• Auxiliary door stop required, overhead or floor type
• Models available to meet ICC/ANSI A117.1 low opening force requirements (consult factory)
• Cold weather fluid option
• Sealed closer option
• Available with floor plate or threshold installation
• Steel cement case
• Arm reinforcement bracket for wood doors
• Standard top pivot: #340 included
• Not allowed for fire-rated doors
• Furnished with wood and machine screws
• Extended spindles available in 1/2" increments up to 2" longer than standard
