Rixson 27105S-LAP Heavy Duty Closers, 105 Degree, Selective Hold Open, Offset Hung Floor, Handed, Less All Parts

  • SKU: 27105SLAPLH
Rixson 27105S-LAP Heavy Duty Closers
Rixson 27105S-LAP Heavy Duty Closers
All RIXSON Products

Rixson 27105S-LAP Heavy Duty Closers, 105 Degree, Selective Hold Open, Offset Hung Floor, Handed, Less All Parts

  • SKU: 27105SLAPLH
Dhs. 4,464.00/ea
In Stock
In Stock
Rixson Handing: LH Left Hand

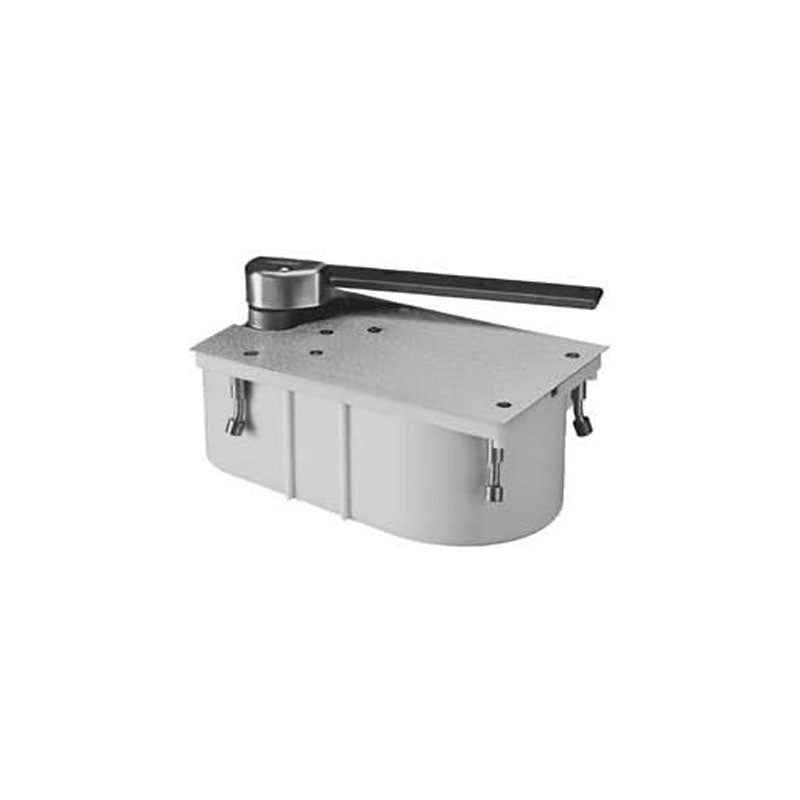

 The Rixson 27105S-LAP is  a Heavy Duty Closer, with 105 Degree swing, with Selective Hold Open, is Offset Hung Floor, comes Handed, and is sold Less All Parts.

Applications

  • Single Acting, Handed
  • Exterior or Interior Doors
  • Weight to 450 lbs.*
  • Door Width up to 4'0" (1219mm)

Features

  • Built-in positive dead stop prevents door from swinging
    beyond the desired opening degree (specify 85°, 90°,
    95°, 105°)
  • Separate and independent valves for closing speed,
    latch speed and backcheck180 top pivot included
  • Available non-hold open (N) or selective hold open
    (S) at same degree as dead stop
    • Delayed action option-prefix “DA” (Non-hold open
    closers only)
  •  Models available to meet ICC/ANSI A117.1 low
    opening force requirements, prefix “PH”. (For 8-1/2
    lbs. of opening force prefix PH and suffix 8-1/2 lbs.)
    Available non-hold open (N) only
  • Available 1-1/2" offset, for doors with 3/4"cladding or frames with applied molding, maximum door weight 250 lbs.Built-in hydraulic backcheck cushions opening from 140° to 180°
  • Cycolac, rust-proof cement case
  • Vertical door adjustment
  • Standard top pivot: #180 included
  • For fire rated openings (up to 3 hour assemblies) prefix “F”. This package will be supplied with a steel top pivot (F180) and a non-hold open closer.
    Intermediate pivot required: FM19 (order separately),
    see page 18Furnished with wood and machine screws
  • Furnished with wood and machine screws

Benefits

  • Ideal for applications requiring door to swing to 180°
  • Heavy-duty closer provides long life of consistent operation
  • Aesthetically appealing way to support and control the door
  • Weight of door is supported by floor closer



Manufacturer Rixson
SKU 27105S LAP
Installation Commercial
Unit of Measure Each
Limited Warranty 10 Years
Fire Rated No



Type Concealed Floor
Mounting Location In Floor
Mounting Style Offset
Hold Open Selective
Product Type Floor Closers

Product Cut Sheet

Floor Closer Handing
