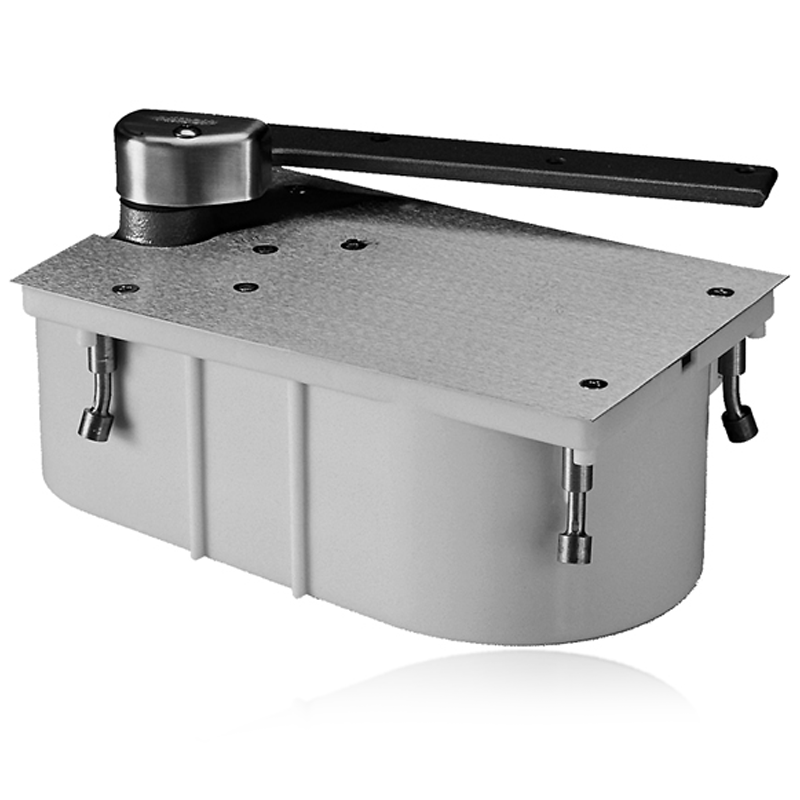

Rixson 27 LAP (Less All Parts) Single-Acting 3/4" Offset Hung Floor Closer Body Only, Handed - Weight Up To 450 lbs.

Rixson 27 Floor closers shall be heavy-duty model 27 (offset). All Rixson 27 floor closers shall be handed in. Choose appropriate functions and strengths to accommodate lead lining, extra high traffic, fire rating, and independently hung, or quick install models. These closers shall have separate and independent checking valves, to control latch speed, closing speed, and adjustable hydraulic backcheck. All single-acting closers shall have a built-in dead-stop feature. All closers have a one-piece spindle assembly. Extra heavy-duty closers shall have a minimum of two thrust bearings and one needle bearing. Rixson 27 Floor Closers shall not have compression spring

 Features:

A built-in positive dead stop prevents the door from swinging beyond the desired opening degree

• Separate and independent valves for closing speed, latch speed, and backcheck
• Available non-hold open (N) or selective hold open (S) at the same degree as dead stop
• Delayed action option (Non-hold open closers only)
• Models available to meet ICC/ANSI 117.1 low opening force requirements
• Cold weather fluid is available
• Sealed closer option
• Available with floor plate or threshold installation
• Available 1-1/2" offset, for doors with cladding or frames with applied molding, maximum door weight 250 lbs
• Cycolac, rustproof cement case
• Vertical door adjustment
• Standard top pivot: #180 included
• Doors 60" (1524mm) to 90" (2286mm) in height should use one intermediate pivot. Each additional 30" (762mm) warrants another intermediate pivot
• For fire-rated openings (up to 3-hour assemblies). This package will be supplied with a steel top pivot (F180) and a non-hold open closer
• Fire-rated closers cannot have the PH option
• For 20-minute labeled doors
• Furnished with wood and machine screws
• Extended spindles are available in 1/2" increments up to 2" longer than standard
