Description

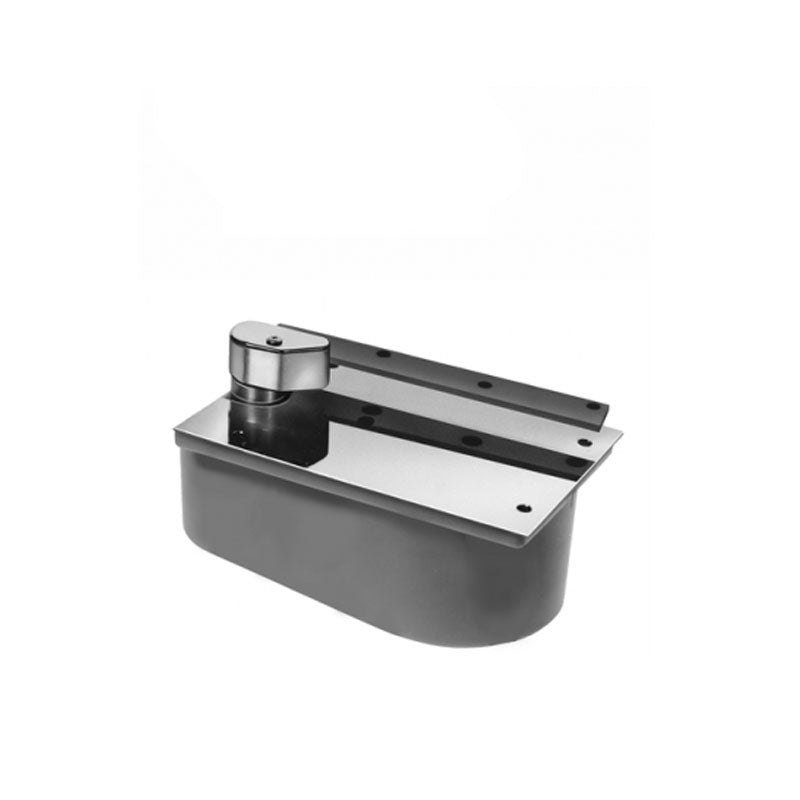

The Rixson 20N-LAP is a standard Weight and Duty Offset Hung Floor Closer, that has a 180 Degree Swing, and is Handed.
The Rixson 20 is a 3/4" offset-hung floor closer designed for standard door frame installation for interior doors weighing up to 200 lbs. Includes door closer body only, Less all parts
Features
- Single acting, handed
- Interior doors
- 180 top pivot included
- M19 intermediate pivots recommended (order separately)
- Allows door to swing 180° (trim permitting)
- Available non-hold open (N) only
- Single valve adjustable closing speed 70° to 0°
- Built-in hydraulic backcheck cushions opening from 140° to 180°
- Vertical door adjustment
- Cast iron cement case
- Extended spindles available in 1/2" increments up to 2" longer than standard
- Available with floor plate or threshold installation
- Furnished with wood and machine screws
- Door width up to 3' 0"
- Door weight up to 200lbs.
Benefits
- Ideal for applications requiring door to swing to 180°
- Heavy-duty closer provides long life of consistent operation
- Aesthetically appealing way to support and control the door
- Weight of door is supported by floor closer
Product Specs
Manufacturer | Rixson |
SKU | 20N LAP |
Installation | Commercial |
Unit of Measure | Each |
Limited Warranty | 2 Years |
Fire Rated | No |
Technical Specs
Type | Concealed Floor |
Mounting Location | In Floor |
Mounting Style | Offset |
Product Type | Floor Closers |
