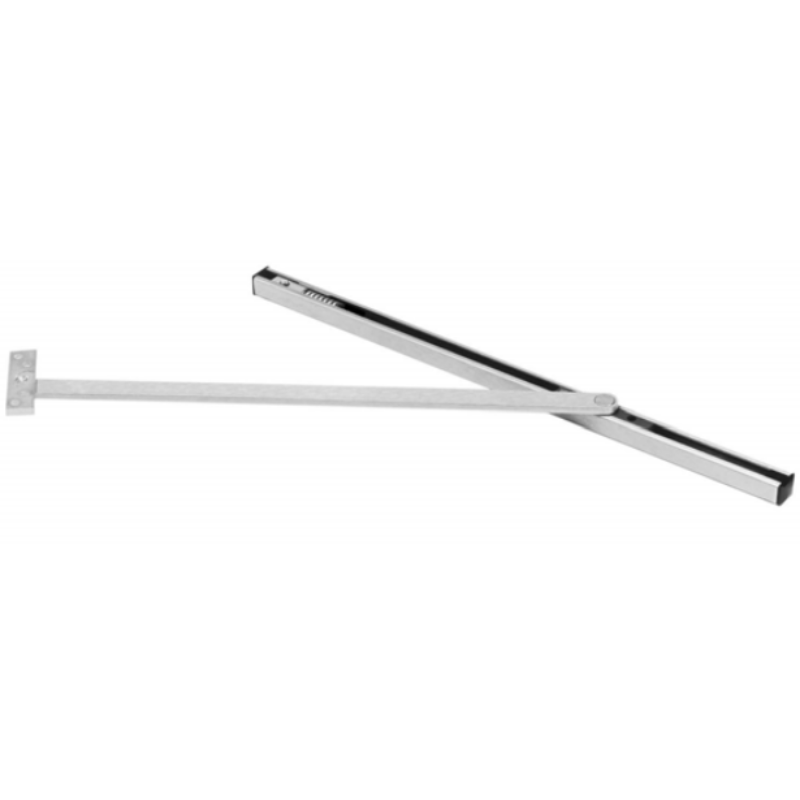

Rixson 2-346-630 Concealed Overhead Door Stop Multi Function, For Moderate Traffic, Medium Weight Doors, Single Or Double Acting Doors, Max 110 Degrees, 1-3/4 Inch Thick Dr, Non Handed, 30-1/16" - 36" Door Width for Butt Offset Pivots, 32-1/16" - 38-1/2" Door Width for Center Hung Pivots, US32D Stainless Steel Finish

The Rixson 2-346-630 is a versatile concealed overhead door stop designed for moderate-traffic installations with multi-function capability. This adjustable unit handles both single and double-acting doors with a maximum opening angle of 110 degrees, perfectly suited for medium-weight doors measuring 1-3/4 inches thick. Its non-handed configuration works seamlessly with door openings ranging from 30-1/16" to 36" on offset pivot butts or 32-1/16" to 38-1/2" on center-hung pivots. Built with US32D stainless steel construction for lasting performance in commercial environments.

Application

• Interior or exterior doors

• Single or double acting

• Non-handed

• Recommended for high traffic, heavy abuse installations

Features

• 30-1/16" - 36" Door Width for Butt Offset Pivots
• 32-1/16" - 38-1/2" Door Width for Center Hung Pivots
• Heavy-duty, adjustable
• Slide track design
• Order specifically as a stop or hold open
• 1-3/4" minimum door thickness, for thicker doors consult factory
• 110° maximum opening (except 1ADJ for center hung 30-36" door which is 105°)
• Degree of opening is fully adjustable and can be adapted to changing needs
• Heavy shock absorber spring provides 5-7° compression before dead stop
• 1-3/16" square channel
• Complete screw packet kit for installation in wood or
  metal door and frame
• For security areas, Torx® screws available for exposed fasteners
• Durable slider cam and shock block


Compliance

• ANSI/BHMA A156.8, Grade 1 Certified (Hold Open,
  Stop Models)
• Stop function UL listed for fire door assemblies
